nego.h File Reference

#include "transport.h"
#include <freerdp/types.h>
#include <freerdp/settings.h>
#include <freerdp/log.h>
#include <freerdp/api.h>
#include <winpr/stream.h>

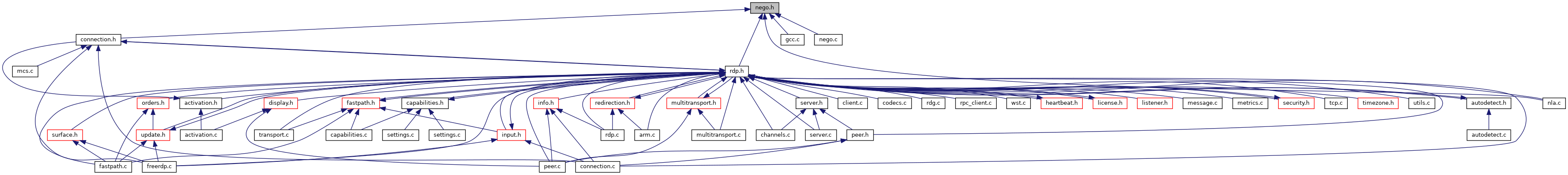

This graph shows which files directly or indirectly include this file:

Macros
#define	PROTOCOL_RDP   0x00000000
#define	PROTOCOL_SSL   0x00000001
#define	PROTOCOL_HYBRID   0x00000002
#define	PROTOCOL_RDSTLS   0x00000004
#define	PROTOCOL_HYBRID_EX   0x00000008
#define	PROTOCOL_RDSAAD   0x00000010
#define	PROTOCOL_FAILED_NEGO   0x80000000 /* only used internally, not on the wire */
#define	PRECONNECTION_PDU_V1_SIZE   16
#define	PRECONNECTION_PDU_V2_MIN_SIZE   (PRECONNECTION_PDU_V1_SIZE + 2)
#define	PRECONNECTION_PDU_V1   1
#define	PRECONNECTION_PDU_V2   2
#define	RESTRICTED_ADMIN_MODE_REQUIRED   0x01
#define	REDIRECTED_AUTHENTICATION_MODE_REQUIRED   0x02
#define	CORRELATION_INFO_PRESENT   0x08

Enumerations
enum	RDP_NEG_FAILURE_FAILURECODES {   SSL_REQUIRED_BY_SERVER = 0x00000001 , SSL_NOT_ALLOWED_BY_SERVER = 0x00000002 , SSL_CERT_NOT_ON_SERVER = 0x00000003 , INCONSISTENT_FLAGS = 0x00000004 ,   HYBRID_REQUIRED_BY_SERVER = 0x00000005 , SSL_WITH_USER_AUTH_REQUIRED_BY_SERVER = 0x00000006 }
enum	NEGO_STATE {   NEGO_STATE_INITIAL , NEGO_STATE_RDSTLS , NEGO_STATE_AAD , NEGO_STATE_EXT ,   NEGO_STATE_NLA , NEGO_STATE_TLS , NEGO_STATE_RDP , NEGO_STATE_FAIL ,   NEGO_STATE_FINAL }
enum	RDP_NEG_MSG { TYPE_RDP_NEG_REQ = 0x1 , TYPE_RDP_NEG_RSP = 0x2 , TYPE_RDP_NEG_FAILURE = 0x3 , TYPE_RDP_CORRELATION_INFO = 0x6 }
enum	RdpNegRespFlags {   EXTENDED_CLIENT_DATA_SUPPORTED = 0x01 , DYNVC_GFX_PROTOCOL_SUPPORTED = 0x02 , RDP_NEGRSP_RESERVED = 0x04 , RESTRICTED_ADMIN_MODE_SUPPORTED = 0x08 ,   REDIRECTED_AUTHENTICATION_MODE_SUPPORTED = 0x10 }

Functions
FREERDP_LOCAL BOOL	nego_connect (rdpNego *nego)
FREERDP_LOCAL BOOL	nego_disconnect (rdpNego *nego)
FREERDP_LOCAL int	nego_recv (rdpTransport *transport, wStream *s, void *extra)
FREERDP_LOCAL BOOL	nego_read_request (rdpNego *nego, wStream *s)
FREERDP_LOCAL BOOL	nego_send_negotiation_request (rdpNego *nego)
FREERDP_LOCAL BOOL	nego_send_negotiation_response (rdpNego *nego)
FREERDP_LOCAL void	nego_free (rdpNego *nego)
FREERDP_LOCAL rdpNego *	nego_new (rdpTransport *transport)
FREERDP_LOCAL void	nego_init (rdpNego *nego)
FREERDP_LOCAL BOOL	nego_set_target (rdpNego *nego, const char *hostname, UINT16 port)
FREERDP_LOCAL void	nego_set_negotiation_enabled (rdpNego *nego, BOOL NegotiateSecurityLayer)
FREERDP_LOCAL void	nego_set_restricted_admin_mode_required (rdpNego *nego, BOOL RestrictedAdminModeRequired)
FREERDP_LOCAL void	nego_set_RCG_required (rdpNego *nego, BOOL enabled)
FREERDP_LOCAL void	nego_set_RCG_supported (rdpNego *nego, BOOL enabled)
FREERDP_LOCAL BOOL	nego_get_remoteCredentialGuard (rdpNego *nego)
FREERDP_LOCAL void	nego_set_childsession_enabled (rdpNego *nego, BOOL ChildSessionEnabled)
FREERDP_LOCAL void	nego_set_gateway_enabled (rdpNego *nego, BOOL GatewayEnabled)
FREERDP_LOCAL void	nego_set_gateway_bypass_local (rdpNego *nego, BOOL GatewayBypassLocal)
FREERDP_LOCAL void	nego_enable_rdp (rdpNego *nego, BOOL enable_rdp)
FREERDP_LOCAL void	nego_enable_tls (rdpNego *nego, BOOL enable_tls)
FREERDP_LOCAL void	nego_enable_nla (rdpNego *nego, BOOL enable_nla)
FREERDP_LOCAL void	nego_enable_rdstls (rdpNego *nego, BOOL enable_rdstls)
FREERDP_LOCAL void	nego_enable_aad (rdpNego *nego, BOOL enable_aad)
FREERDP_LOCAL void	nego_enable_ext (rdpNego *nego, BOOL enable_ext)
FREERDP_LOCAL const BYTE *	nego_get_routing_token (rdpNego *nego, DWORD *RoutingTokenLength)
FREERDP_LOCAL BOOL	nego_set_routing_token (rdpNego *nego, const void *RoutingToken, DWORD RoutingTokenLength)
FREERDP_LOCAL BOOL	nego_set_cookie (rdpNego *nego, const char *cookie)
FREERDP_LOCAL void	nego_set_cookie_max_length (rdpNego *nego, UINT32 CookieMaxLength)
FREERDP_LOCAL void	nego_set_send_preconnection_pdu (rdpNego *nego, BOOL SendPreconnectionPdu)
FREERDP_LOCAL void	nego_set_preconnection_id (rdpNego *nego, UINT32 PreconnectionId)
FREERDP_LOCAL void	nego_set_preconnection_blob (rdpNego *nego, const char *PreconnectionBlob)
FREERDP_LOCAL UINT32	nego_get_selected_protocol (rdpNego *nego)
FREERDP_LOCAL BOOL	nego_set_selected_protocol (rdpNego *nego, UINT32 SelectedProtocol)
FREERDP_LOCAL UINT32	nego_get_requested_protocols (rdpNego *nego)
FREERDP_LOCAL BOOL	nego_set_requested_protocols (rdpNego *nego, UINT32 RequestedProtocols)
FREERDP_LOCAL BOOL	nego_update_settings_from_state (rdpNego *nego, rdpSettings *settings)
FREERDP_LOCAL BOOL	nego_set_state (rdpNego *nego, NEGO_STATE state)
FREERDP_LOCAL NEGO_STATE	nego_get_state (rdpNego *nego)
FREERDP_LOCAL SEC_WINNT_AUTH_IDENTITY *	nego_get_identity (rdpNego *nego)
FREERDP_LOCAL void	nego_free_nla (rdpNego *nego)

Macro Definition Documentation

CORRELATION_INFO_PRESENT

#define CORRELATION_INFO_PRESENT   0x08

PRECONNECTION_PDU_V1

#define PRECONNECTION_PDU_V1   1

PRECONNECTION_PDU_V1_SIZE

#define PRECONNECTION_PDU_V1_SIZE   16

PRECONNECTION_PDU_V2

#define PRECONNECTION_PDU_V2   2

PRECONNECTION_PDU_V2_MIN_SIZE

#define PRECONNECTION_PDU_V2_MIN_SIZE   (PRECONNECTION_PDU_V1_SIZE + 2)

PROTOCOL_FAILED_NEGO

#define PROTOCOL_FAILED_NEGO   0x80000000 /* only used internally, not on the wire */

PROTOCOL_HYBRID

#define PROTOCOL_HYBRID   0x00000002

PROTOCOL_HYBRID_EX

#define PROTOCOL_HYBRID_EX   0x00000008

PROTOCOL_RDP

#define PROTOCOL_RDP   0x00000000

FreeRDP: A Remote Desktop Protocol Implementation RDP Protocol Security Negotiation

Copyright 2011-2012 Marc-Andre Moreau marca.nosp@m.ndre.nosp@m..more.nosp@m.au@g.nosp@m.mail..nosp@m.com

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

PROTOCOL_RDSAAD

#define PROTOCOL_RDSAAD   0x00000010

PROTOCOL_RDSTLS

#define PROTOCOL_RDSTLS   0x00000004

PROTOCOL_SSL

#define PROTOCOL_SSL   0x00000001

REDIRECTED_AUTHENTICATION_MODE_REQUIRED

#define REDIRECTED_AUTHENTICATION_MODE_REQUIRED   0x02

RESTRICTED_ADMIN_MODE_REQUIRED

#define RESTRICTED_ADMIN_MODE_REQUIRED   0x01

Enumeration Type Documentation

NEGO_STATE

enum NEGO_STATE

Enumerator
NEGO_STATE_INITIAL
NEGO_STATE_RDSTLS
NEGO_STATE_AAD
NEGO_STATE_EXT
NEGO_STATE_NLA
NEGO_STATE_TLS
NEGO_STATE_RDP
NEGO_STATE_FAIL
NEGO_STATE_FINAL

RDP_NEG_FAILURE_FAILURECODES

enum RDP_NEG_FAILURE_FAILURECODES

Enumerator
SSL_REQUIRED_BY_SERVER
SSL_NOT_ALLOWED_BY_SERVER
SSL_CERT_NOT_ON_SERVER
INCONSISTENT_FLAGS
HYBRID_REQUIRED_BY_SERVER
SSL_WITH_USER_AUTH_REQUIRED_BY_SERVER

RDP_NEG_MSG

enum RDP_NEG_MSG

Enumerator
TYPE_RDP_NEG_REQ
TYPE_RDP_NEG_RSP
TYPE_RDP_NEG_FAILURE
TYPE_RDP_CORRELATION_INFO

RdpNegRespFlags

enum RdpNegRespFlags

Enumerator
EXTENDED_CLIENT_DATA_SUPPORTED
DYNVC_GFX_PROTOCOL_SUPPORTED
RDP_NEGRSP_RESERVED
RESTRICTED_ADMIN_MODE_SUPPORTED
REDIRECTED_AUTHENTICATION_MODE_SUPPORTED

Function Documentation

nego_connect()

FREERDP_LOCAL BOOL nego_connect

(

rdpNego *

nego

)

Negotiate protocol security and connect.

Parameters

nego	A pointer to the NEGO struct

Returns

TRUE for success, FALSE otherwise

Advertise all supported encryption methods if the client implementation did not set any security methods

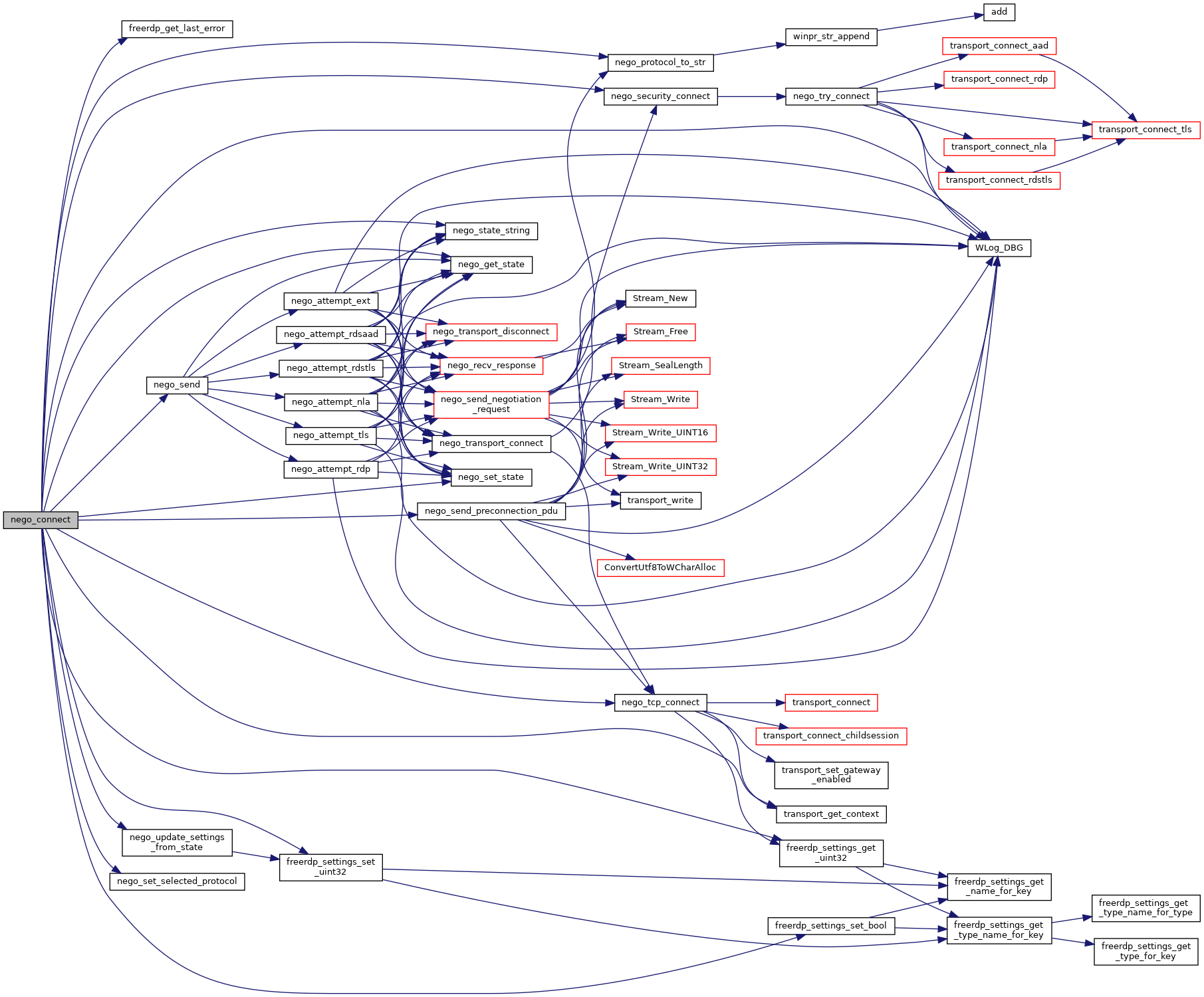

Here is the call graph for this function:

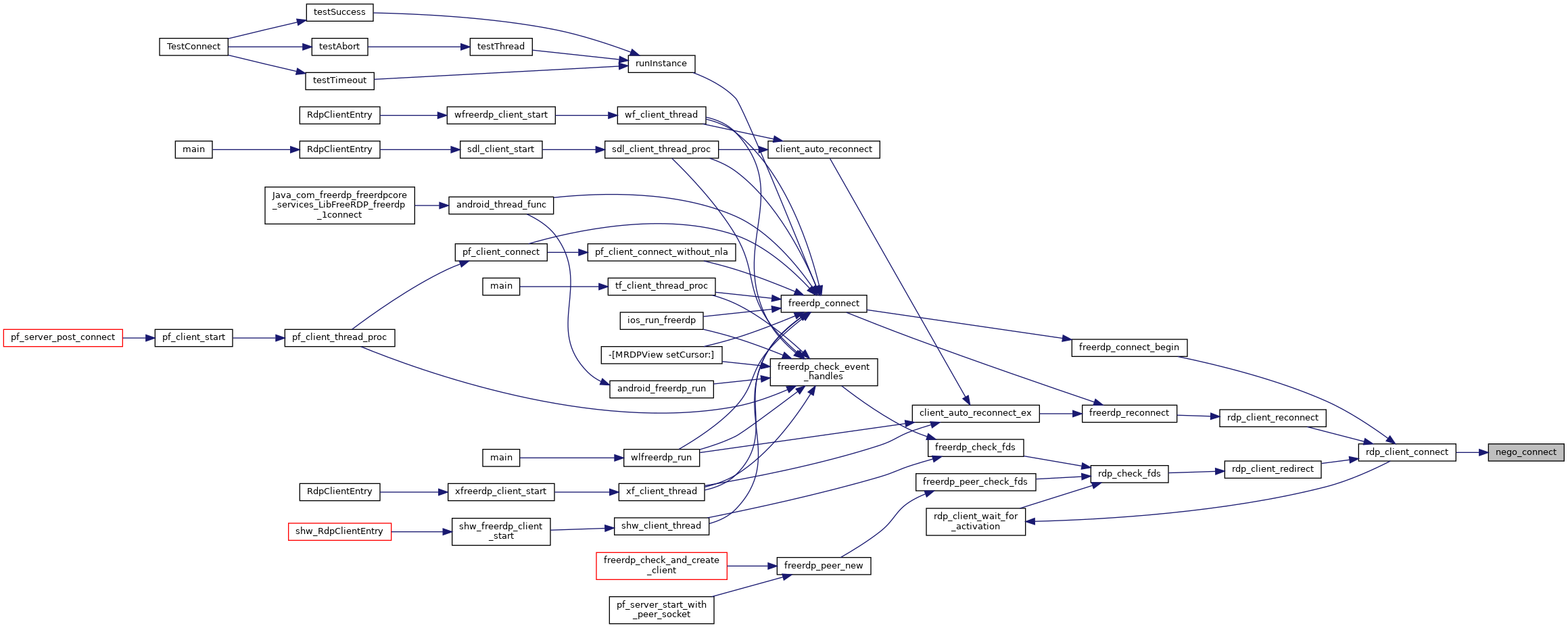

Here is the caller graph for this function:

nego_disconnect()

FREERDP_LOCAL BOOL nego_disconnect

(

rdpNego *

nego

)

Here is the call graph for this function:

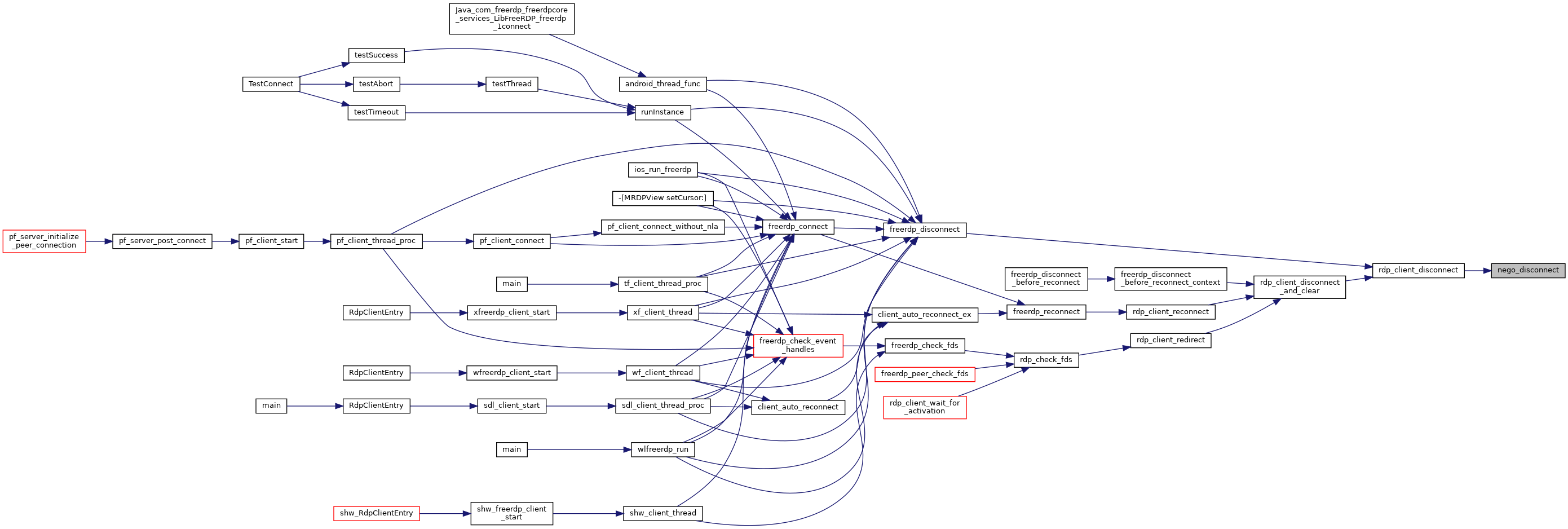

Here is the caller graph for this function:

nego_enable_aad()

FREERDP_LOCAL void nego_enable_aad	(	rdpNego *	nego,
		BOOL	enable_aad
	)

Enable RDS AAD security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_aad	whether to enable RDS AAD Auth protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_enable_ext()

FREERDP_LOCAL void nego_enable_ext	(	rdpNego *	nego,
		BOOL	enable_ext
	)

Enable NLA extended security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_ext	whether to enable network level authentication extended protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_enable_nla()

FREERDP_LOCAL void nego_enable_nla	(	rdpNego *	nego,
		BOOL	enable_nla
	)

Enable NLA security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_nla	whether to enable network level authentication protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_enable_rdp()

FREERDP_LOCAL void nego_enable_rdp	(	rdpNego *	nego,
		BOOL	enable_rdp
	)

Enable RDP security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_rdp	whether to enable normal RDP protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_enable_rdstls()

FREERDP_LOCAL void nego_enable_rdstls	(	rdpNego *	nego,
		BOOL	enable_rdstls
	)

Enable RDSTLS security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_rdstls	whether to enable RDSTLS protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_enable_tls()

FREERDP_LOCAL void nego_enable_tls	(	rdpNego *	nego,
		BOOL	enable_tls
	)

Enable TLS security protocol.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
enable_tls	whether to enable TLS + RDP protocol (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_free()

FREERDP_LOCAL void nego_free

(

rdpNego *

nego

)

Free NEGO state machine.

Parameters

nego	A pointer to the NEGO struct

Here is the call graph for this function:

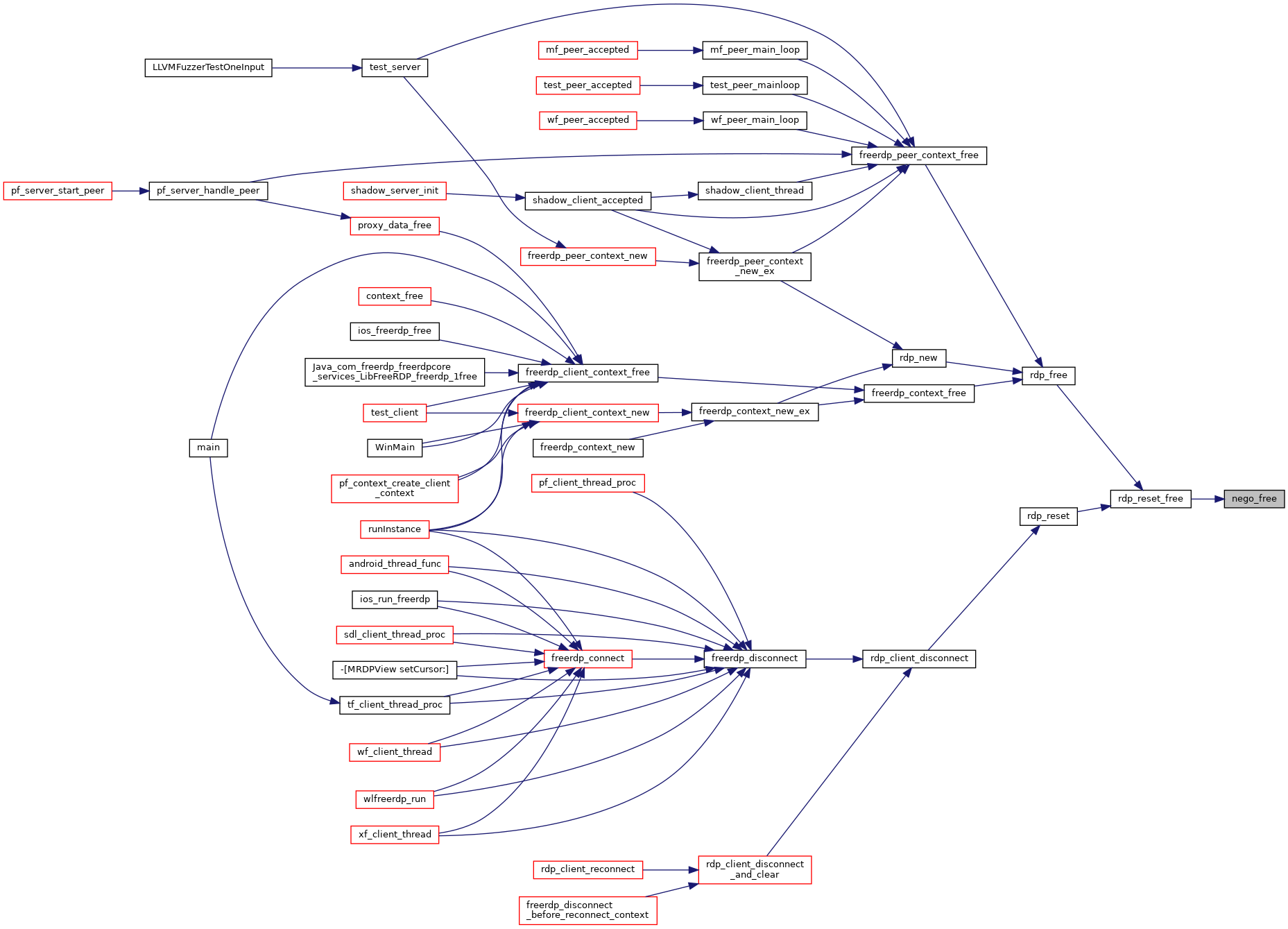

Here is the caller graph for this function:

nego_free_nla()

FREERDP_LOCAL void nego_free_nla

(

rdpNego *

nego

)

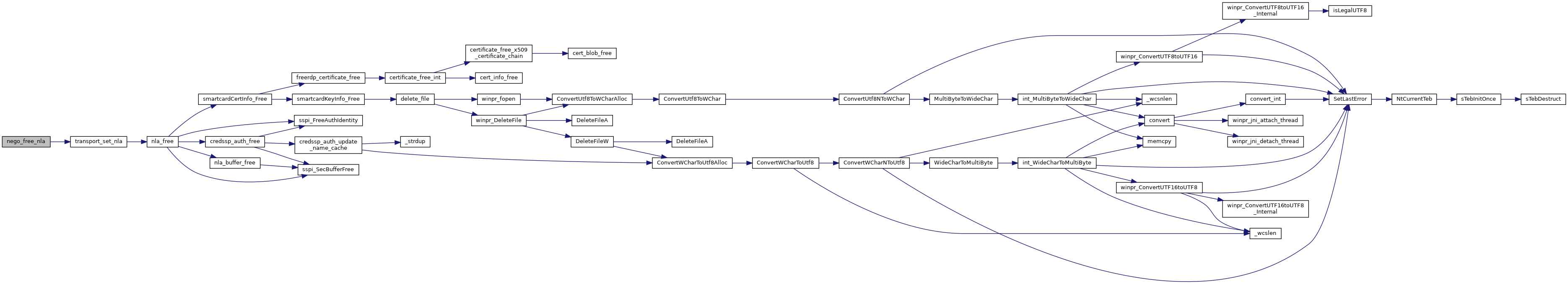

Here is the call graph for this function:

Here is the caller graph for this function:

nego_get_identity()

FREERDP_LOCAL SEC_WINNT_AUTH_IDENTITY* nego_get_identity

(

rdpNego *

nego

)

Here is the call graph for this function:

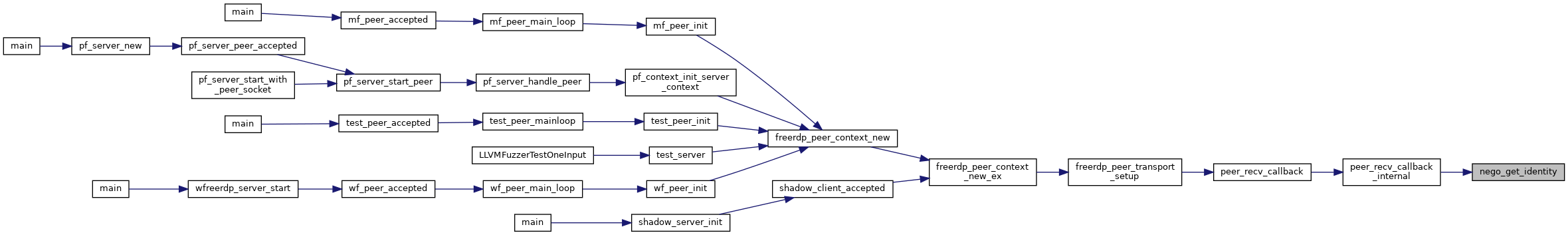

Here is the caller graph for this function:

nego_get_remoteCredentialGuard()

FREERDP_LOCAL BOOL nego_get_remoteCredentialGuard

(

rdpNego *

nego

)

Here is the caller graph for this function:

nego_get_requested_protocols()

FREERDP_LOCAL UINT32 nego_get_requested_protocols

(

rdpNego *

nego

)

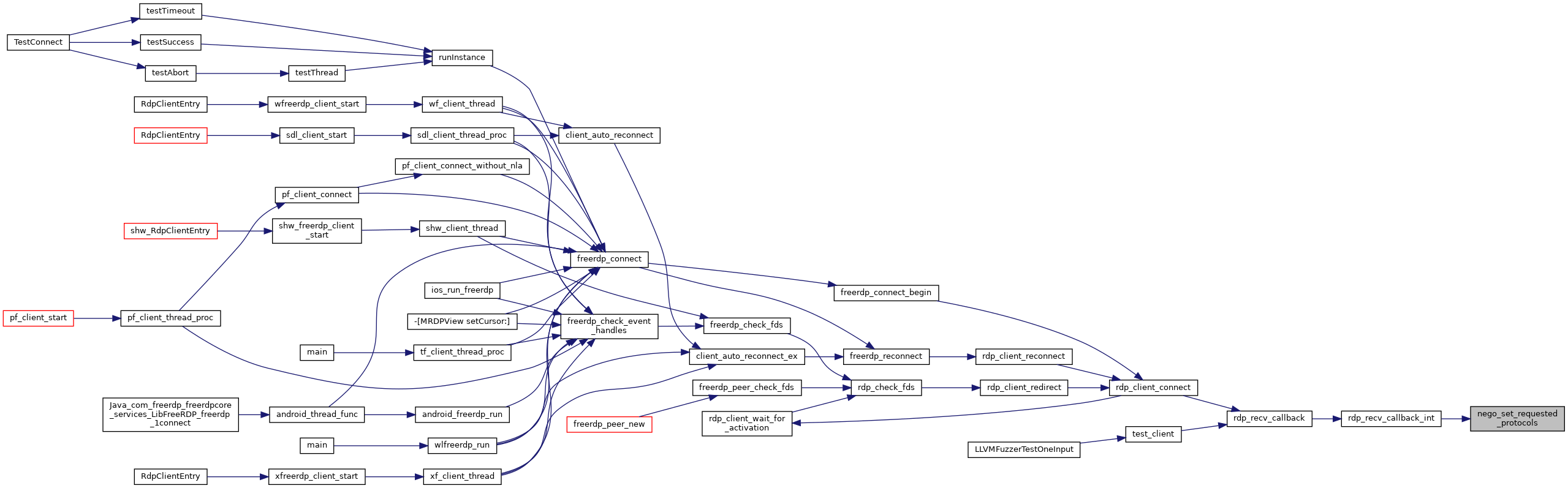

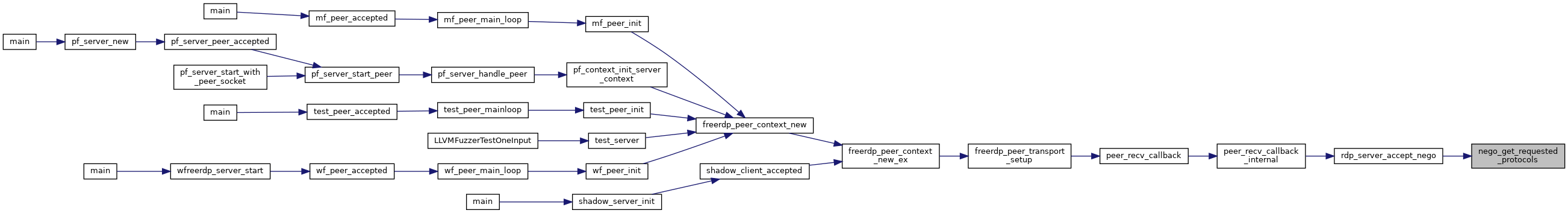

Here is the caller graph for this function:

nego_get_routing_token()

FREERDP_LOCAL const BYTE* nego_get_routing_token	(	rdpNego *	nego,
		DWORD *	RoutingTokenLength
	)

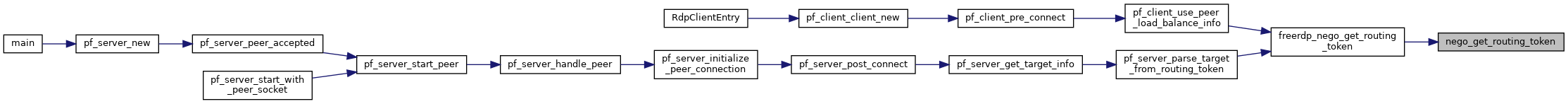

Here is the caller graph for this function:

nego_get_selected_protocol()

FREERDP_LOCAL UINT32 nego_get_selected_protocol

(

rdpNego *

nego

)

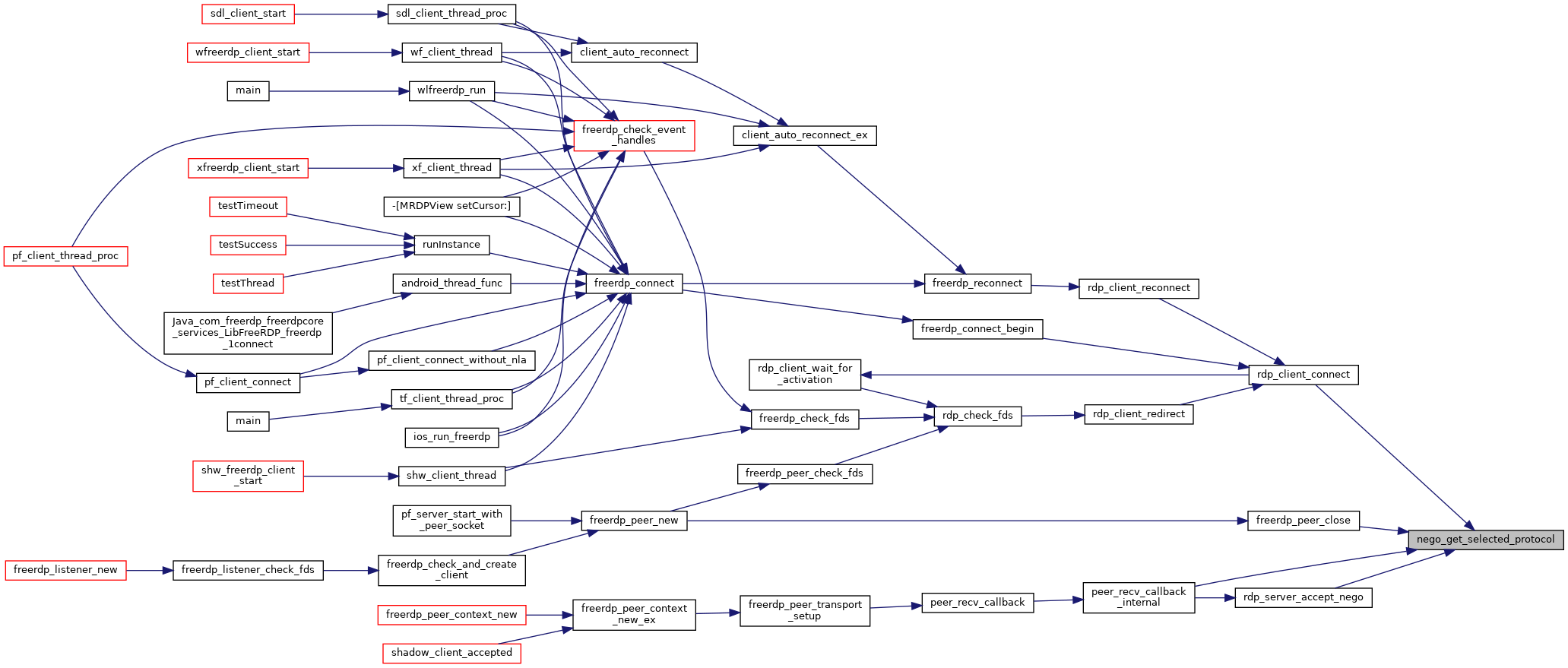

Here is the caller graph for this function:

nego_get_state()

FREERDP_LOCAL NEGO_STATE nego_get_state

(

rdpNego *

nego

)

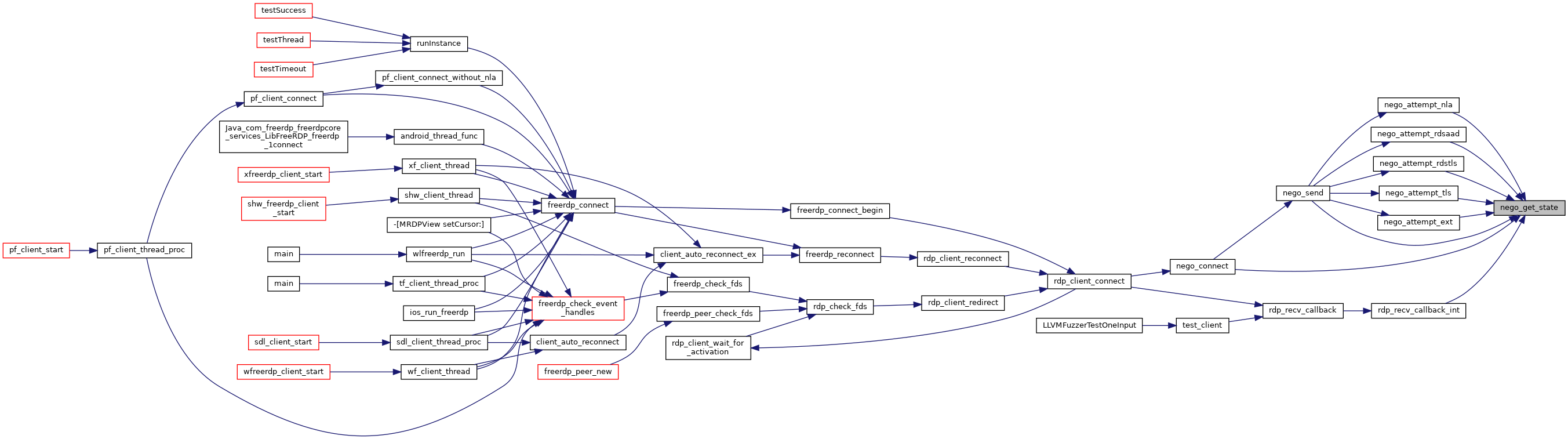

Here is the caller graph for this function:

nego_init()

FREERDP_LOCAL void nego_init

(

rdpNego *

nego

)

Initialize NEGO state machine.

Parameters

nego	A pointer to the NEGO struct

Here is the call graph for this function:

Here is the caller graph for this function:

nego_new()

FREERDP_LOCAL rdpNego* nego_new

(

rdpTransport *

transport

)

Create a new NEGO state machine instance.

Parameters

transport

The transport to use

Returns

A pointer to the allocated NEGO instance or NULL

Here is the call graph for this function:

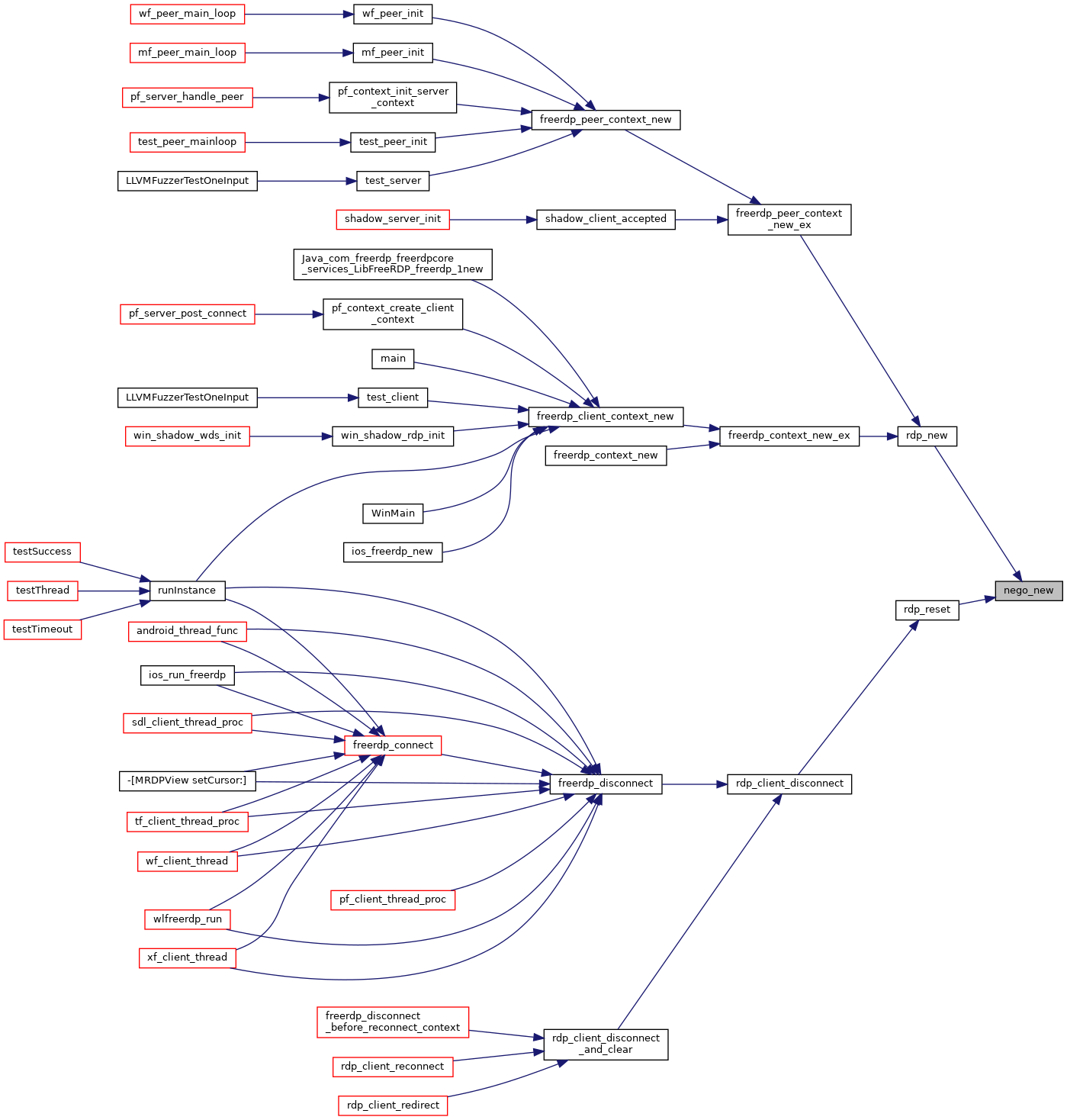

Here is the caller graph for this function:

nego_read_request()

FREERDP_LOCAL BOOL nego_read_request	(	rdpNego *	nego,
		wStream *	s
	)

Read protocol security negotiation request message.

Parameters

nego	A pointer to the NEGO struct
s	A stream to read from

Returns

TRUE for success, FALSE for failure

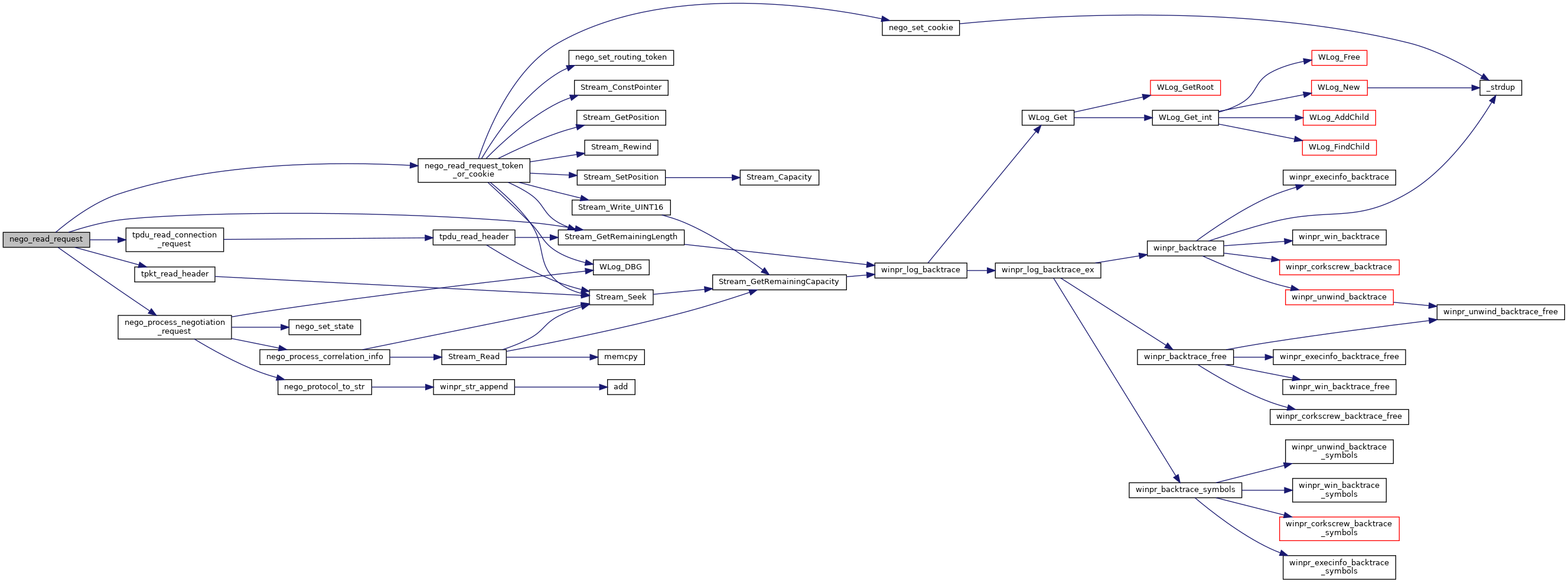

Here is the call graph for this function:

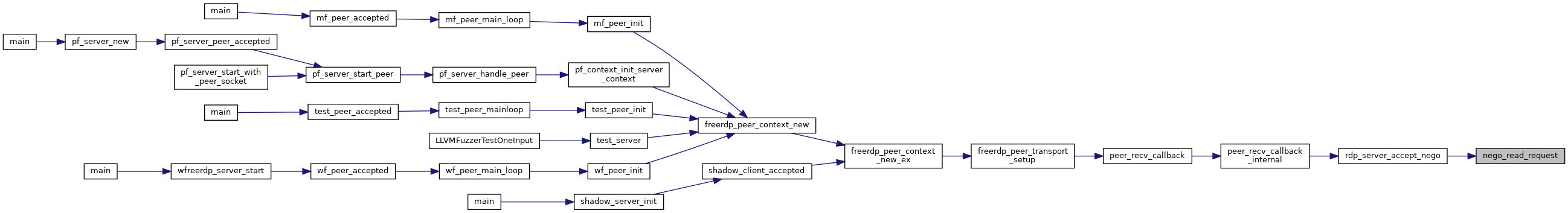

Here is the caller graph for this function:

nego_recv()

FREERDP_LOCAL int nego_recv	(	rdpTransport *	transport,
		wStream *	s,
		void *	extra
	)

Receive protocol security negotiation message. msdn{cc240501}

Parameters

transport	The transport to read from
s	A stream to read the received data from
extra	nego pointer

Returns

0 for success, -1 for failure

Here is the call graph for this function:

Here is the caller graph for this function:

nego_send_negotiation_request()

FREERDP_LOCAL BOOL nego_send_negotiation_request

(

rdpNego *

nego

)

Send RDP Negotiation Request (RDP_NEG_REQ). msdn{cc240500} msdn{cc240470}

Parameters

nego	A pointer to the NEGO struct

Returns

TRUE for success, FALSE otherwise

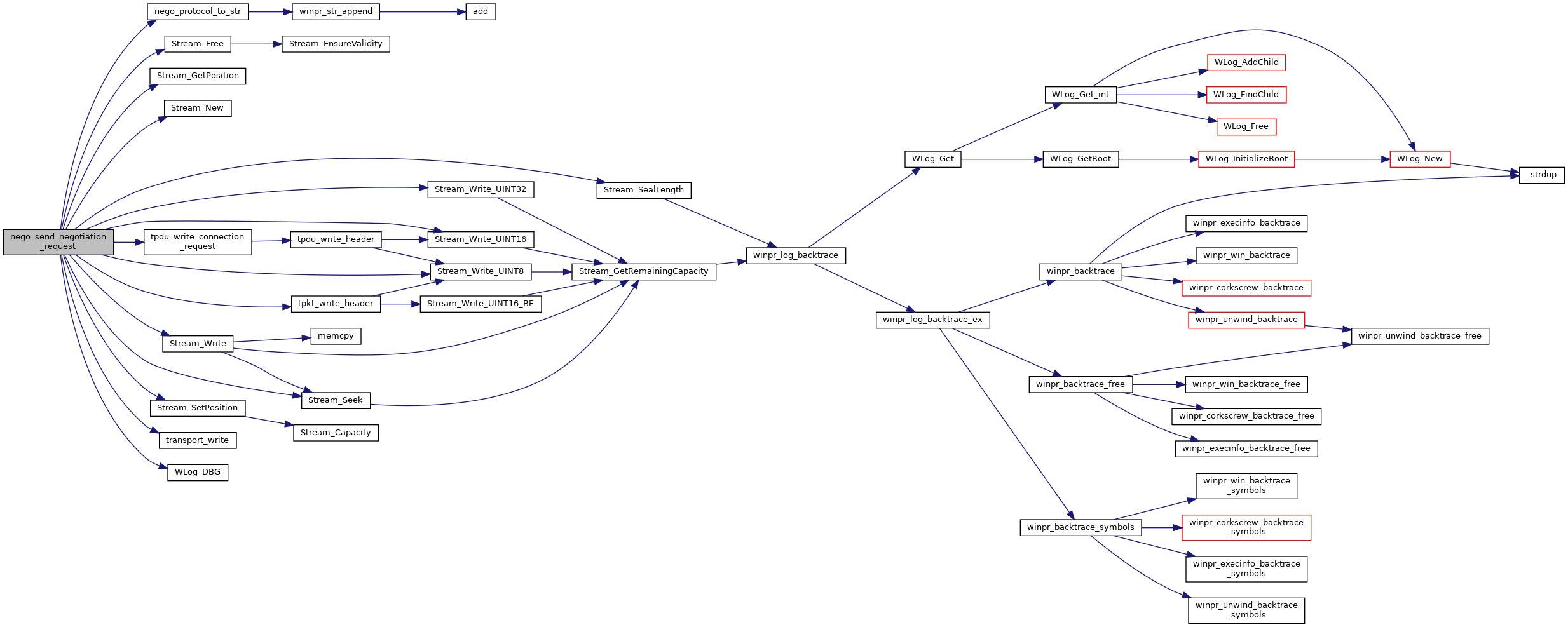

Here is the call graph for this function:

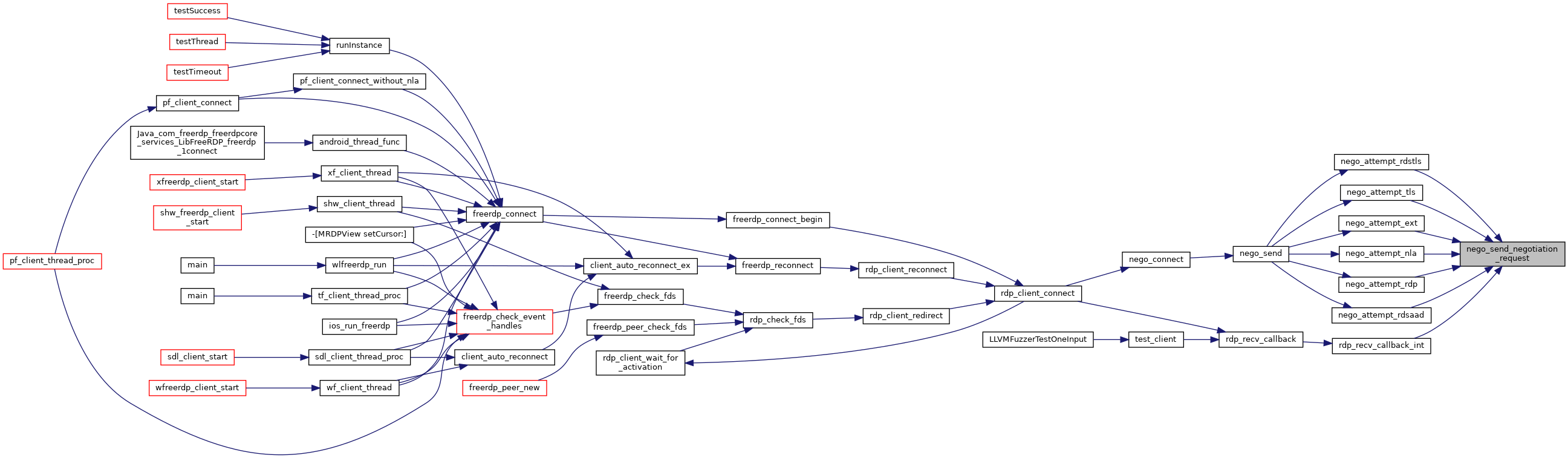

Here is the caller graph for this function:

nego_send_negotiation_response()

FREERDP_LOCAL BOOL nego_send_negotiation_response

(

rdpNego *

nego

)

Send RDP Negotiation Response (RDP_NEG_RSP).

Parameters

nego	A pointer to the NEGO struct

If the server implementation did not explicitely set a encryption level we default to client compatible

Note: This hack was firstly introduced in commit 95f5e115 to disable the unnecessary encryption with peers connecting to 127.0.0.1 or local unix sockets. This also affects connections via port tunnels! (e.g. ssh -L)

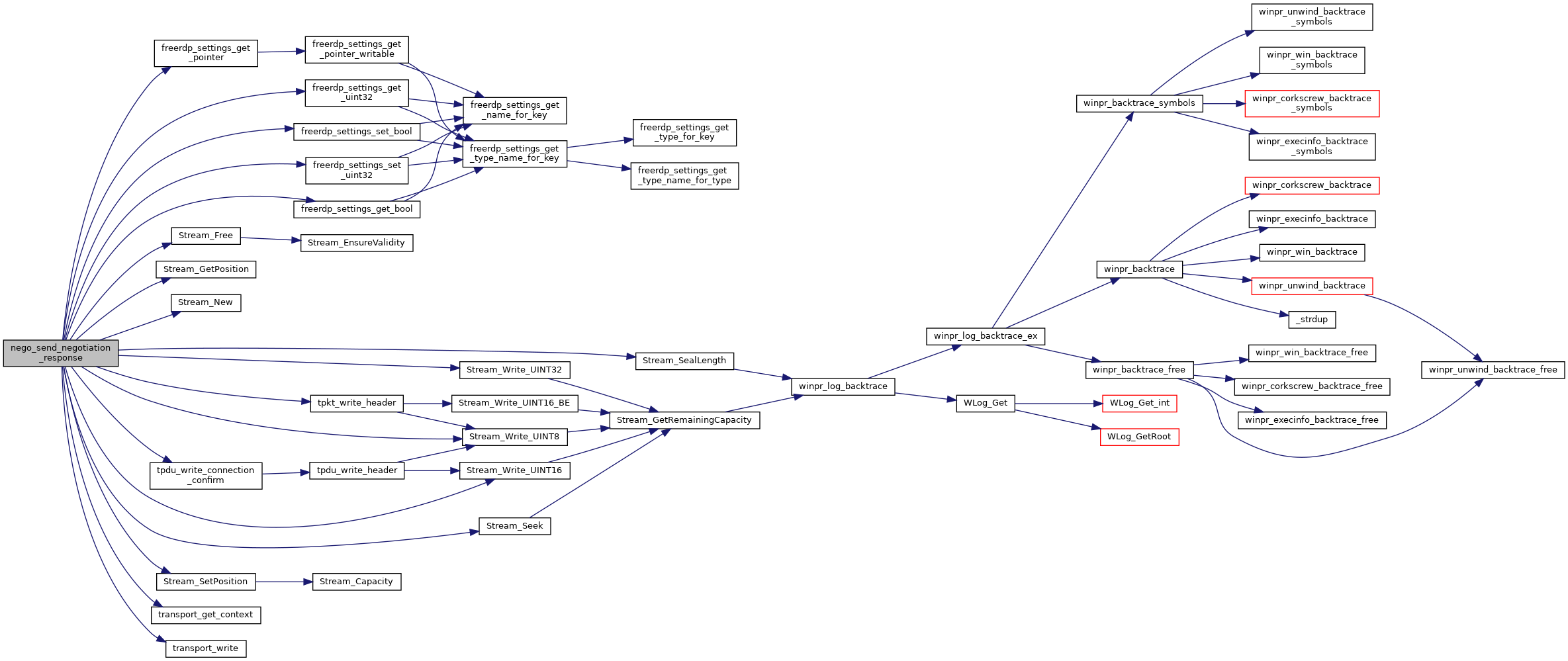

Here is the call graph for this function:

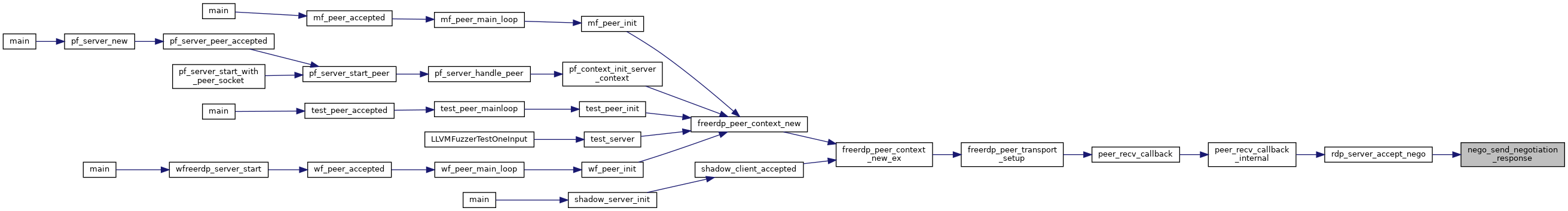

Here is the caller graph for this function:

nego_set_childsession_enabled()

FREERDP_LOCAL void nego_set_childsession_enabled	(	rdpNego *	nego,
		BOOL	ChildSessionEnabled
	)

Here is the caller graph for this function:

nego_set_cookie()

FREERDP_LOCAL BOOL nego_set_cookie	(	rdpNego *	nego,
		const char *	cookie
	)

Set cookie.

Parameters

nego	A pointer to the NEGO struct
cookie	A pointer to the cookie string

Returns

TRUE for success, FALSE otherwise

Here is the call graph for this function:

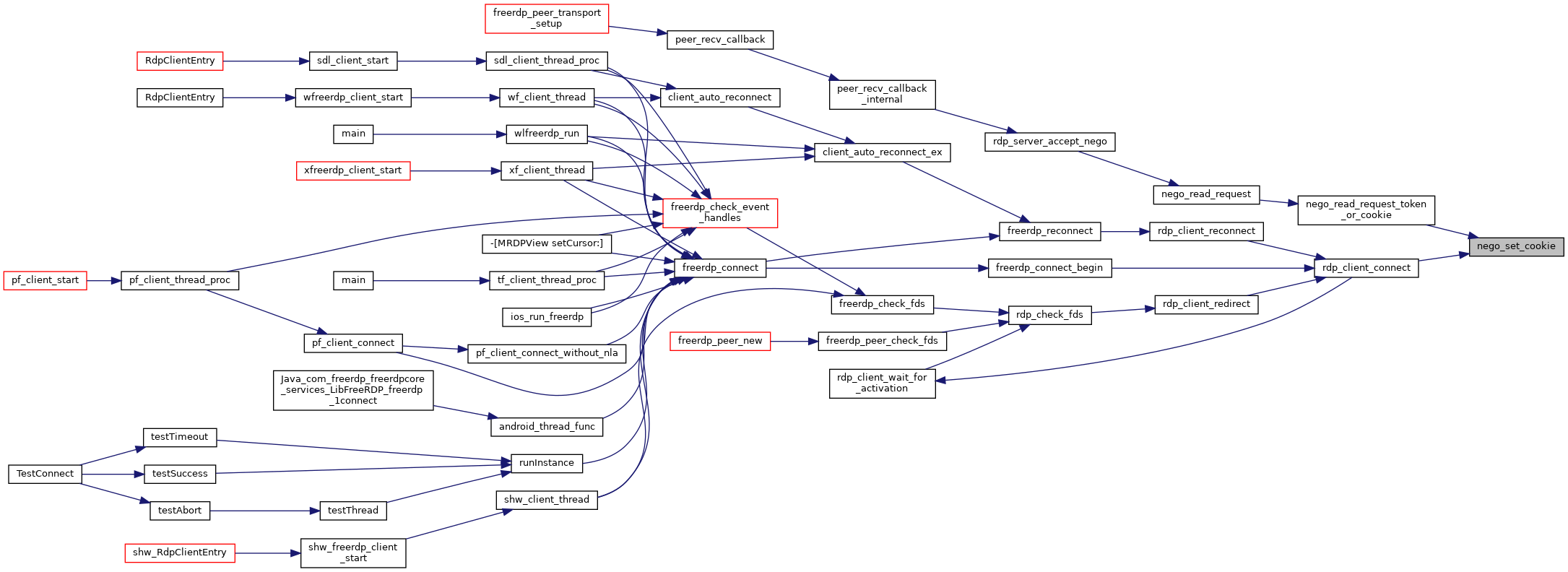

Here is the caller graph for this function:

nego_set_cookie_max_length()

FREERDP_LOCAL void nego_set_cookie_max_length	(	rdpNego *	nego,
		UINT32	CookieMaxLength
	)

Set cookie maximum length

Parameters

nego	A pointer to the NEGO struct
CookieMaxLength	the length to set

Here is the caller graph for this function:

nego_set_gateway_bypass_local()

FREERDP_LOCAL void nego_set_gateway_bypass_local	(	rdpNego *	nego,
		BOOL	GatewayBypassLocal
	)

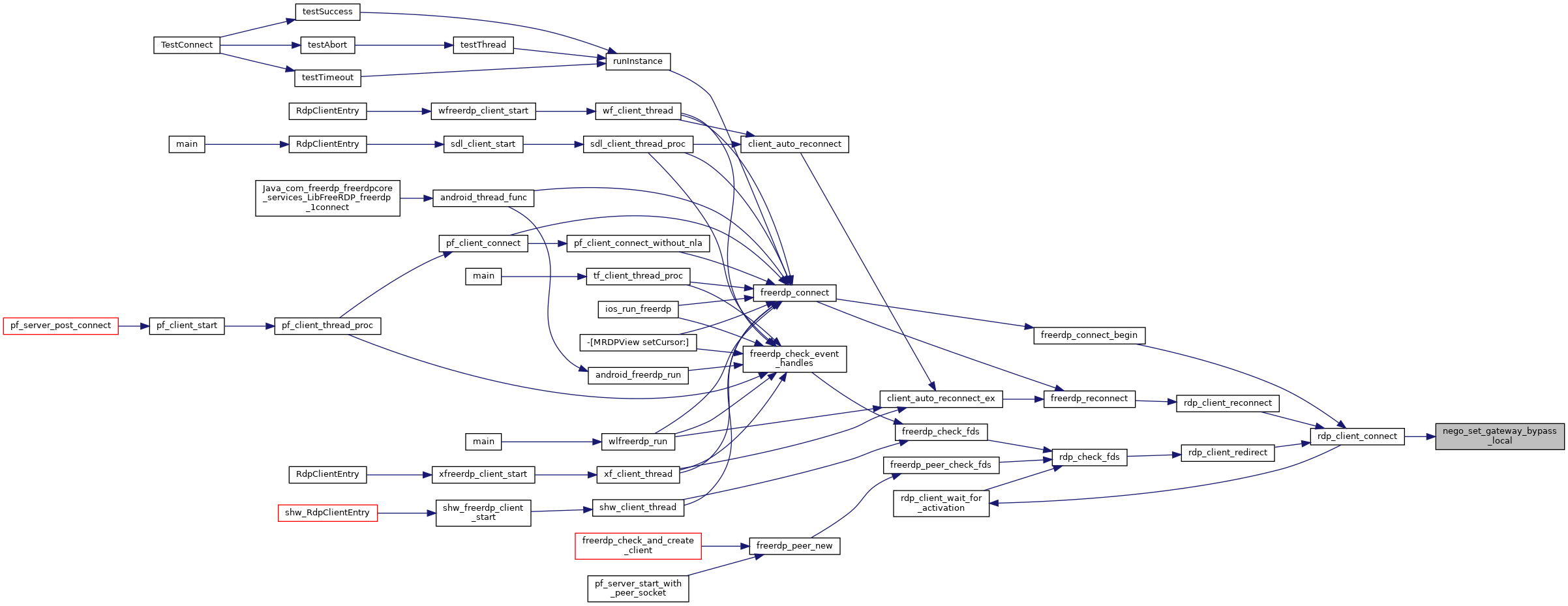

Here is the caller graph for this function:

nego_set_gateway_enabled()

FREERDP_LOCAL void nego_set_gateway_enabled	(	rdpNego *	nego,
		BOOL	GatewayEnabled
	)

Here is the caller graph for this function:

nego_set_negotiation_enabled()

FREERDP_LOCAL void nego_set_negotiation_enabled	(	rdpNego *	nego,
		BOOL	NegotiateSecurityLayer
	)

Enable security layer negotiation.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
NegotiateSecurityLayer	whether to enable security layer negotiation (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_set_preconnection_blob()

FREERDP_LOCAL void nego_set_preconnection_blob	(	rdpNego *	nego,
		const char *	PreconnectionBlob
	)

Set preconnection blob.

Parameters

nego	A pointer to the NEGO struct
PreconnectionBlob	A pointer to the blob to use

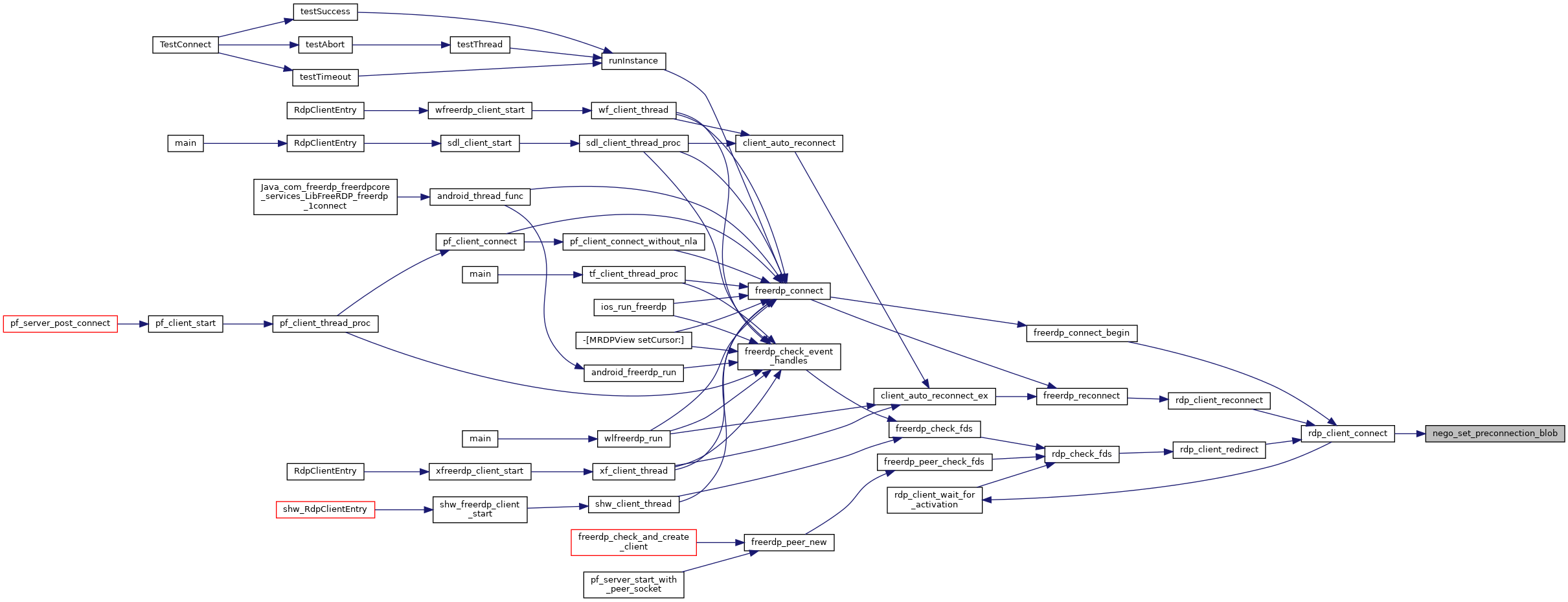

Here is the caller graph for this function:

nego_set_preconnection_id()

FREERDP_LOCAL void nego_set_preconnection_id	(	rdpNego *	nego,
		UINT32	PreconnectionId
	)

Set preconnection id.

Parameters

nego	A pointer to the NEGO struct
PreconnectionId	the ID to set

Here is the caller graph for this function:

nego_set_RCG_required()

FREERDP_LOCAL void nego_set_RCG_required	(	rdpNego *	nego,
		BOOL	enabled
	)

Here is the call graph for this function:

nego_set_RCG_supported()

FREERDP_LOCAL void nego_set_RCG_supported	(	rdpNego *	nego,
		BOOL	enabled
	)

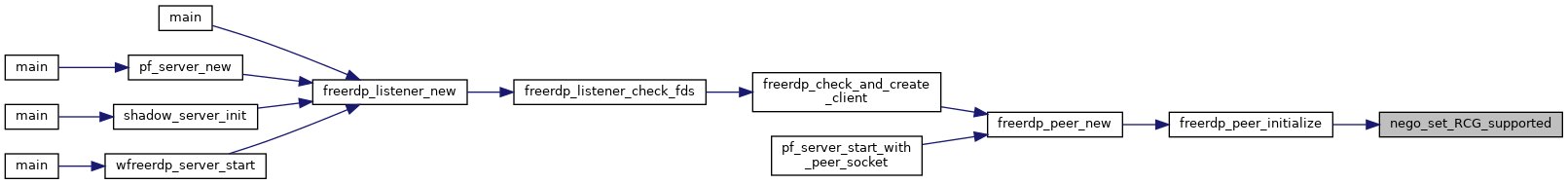

Here is the caller graph for this function:

nego_set_requested_protocols()

FREERDP_LOCAL BOOL nego_set_requested_protocols	(	rdpNego *	nego,
		UINT32	RequestedProtocols
	)

Here is the caller graph for this function:

nego_set_restricted_admin_mode_required()

FREERDP_LOCAL void nego_set_restricted_admin_mode_required	(	rdpNego *	nego,
		BOOL	RestrictedAdminModeRequired
	)

Enable restricted admin mode.

Parameters

nego	A pointer to the NEGO struct pointer to the negotiation structure
RestrictedAdminModeRequired	whether to enable security layer negotiation (TRUE for enabled, FALSE for disabled)

Here is the call graph for this function:

Here is the caller graph for this function:

nego_set_routing_token()

FREERDP_LOCAL BOOL nego_set_routing_token	(	rdpNego *	nego,
		const void *	RoutingToken,
		DWORD	RoutingTokenLength
	)

Set routing token.

Parameters

nego	A pointer to the NEGO struct
RoutingToken	A pointer to the routing token
RoutingTokenLength	The lenght of the routing token

Returns

TRUE for success, FALSE otherwise

Here is the call graph for this function:

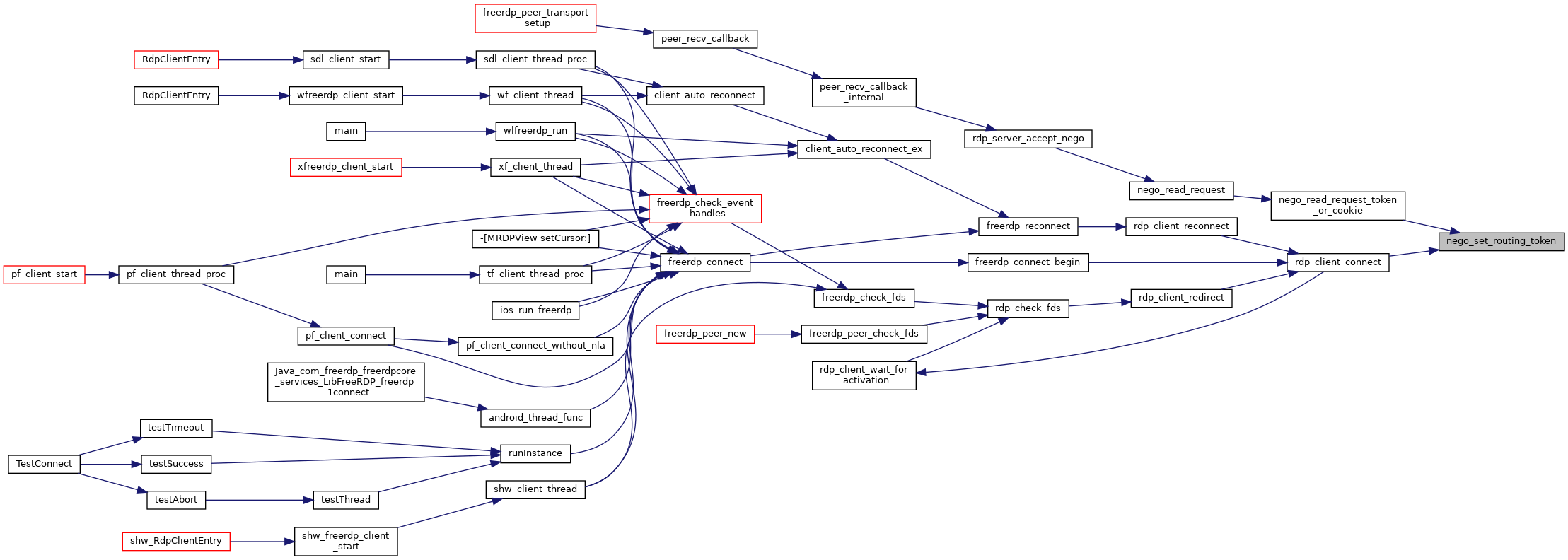

Here is the caller graph for this function:

nego_set_selected_protocol()

FREERDP_LOCAL BOOL nego_set_selected_protocol	(	rdpNego *	nego,
		UINT32	SelectedProtocol
	)

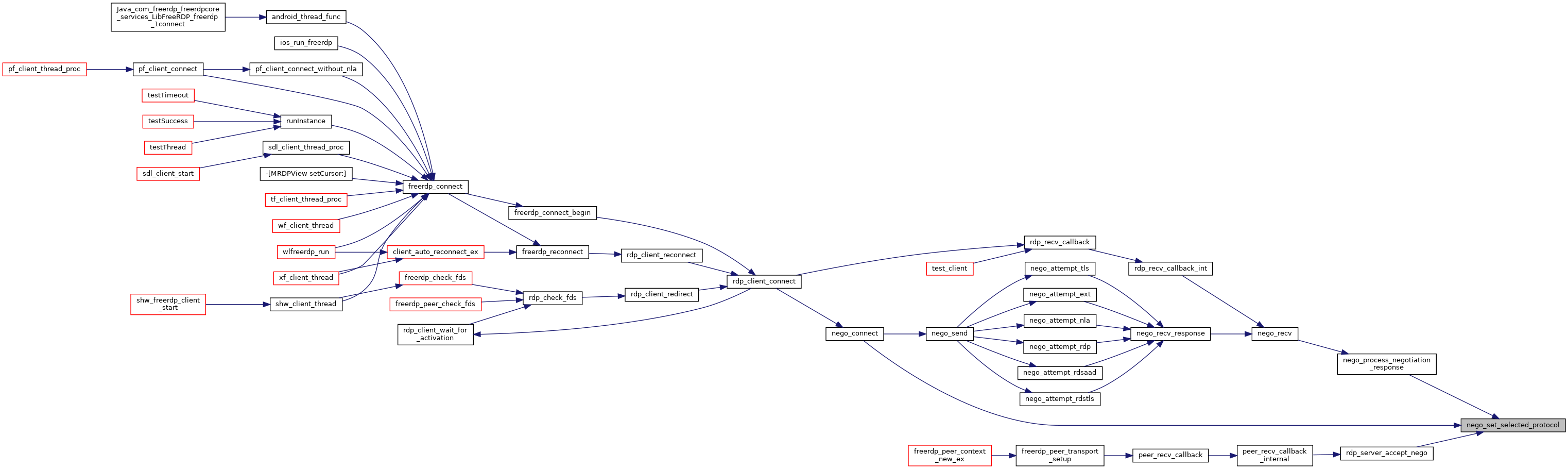

Here is the caller graph for this function:

nego_set_send_preconnection_pdu()

FREERDP_LOCAL void nego_set_send_preconnection_pdu	(	rdpNego *	nego,
		BOOL	SendPreconnectionPdu
	)

Enable / disable preconnection PDU.

Parameters

nego	A pointer to the NEGO struct
SendPreconnectionPdu	The value to set

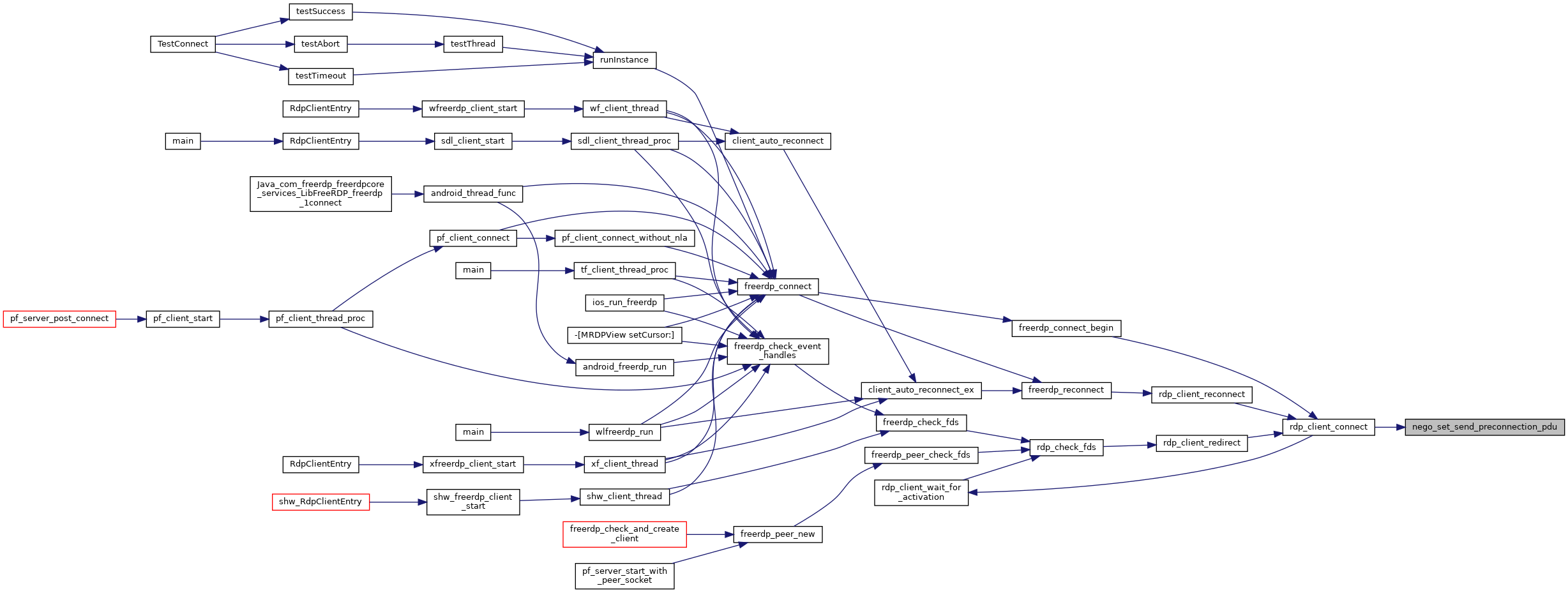

Here is the caller graph for this function:

nego_set_state()

FREERDP_LOCAL BOOL nego_set_state	(	rdpNego *	nego,
		NEGO_STATE	state
	)

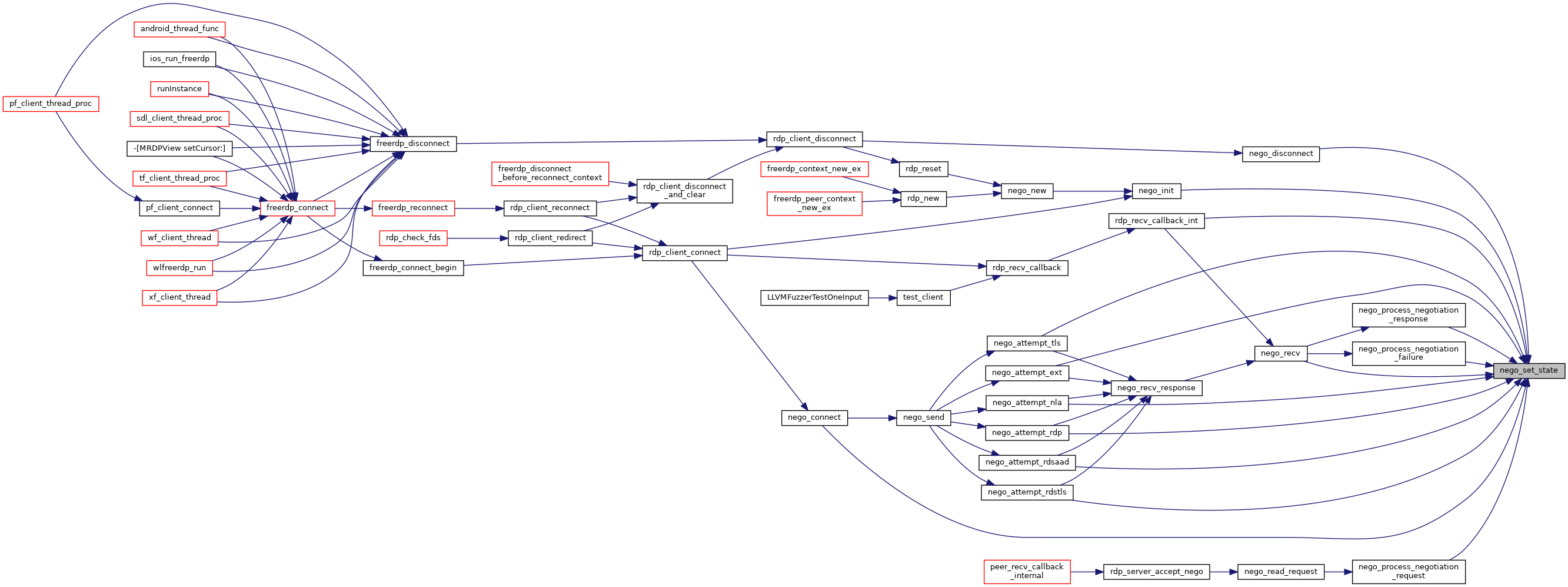

Here is the caller graph for this function:

nego_set_target()

FREERDP_LOCAL BOOL nego_set_target	(	rdpNego *	nego,
		const char *	hostname,
		UINT16	port
	)

Set target hostname and port.

Parameters

nego	A pointer to the NEGO struct
hostname	The hostname to set
port	The port to set

Returns

TRUE for success, FALSE otherwise

Here is the caller graph for this function:

nego_update_settings_from_state()

FREERDP_LOCAL BOOL nego_update_settings_from_state	(	rdpNego *	nego,
		rdpSettings *	settings
	)

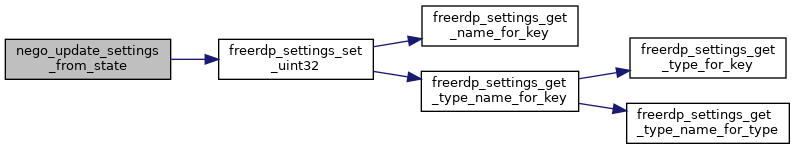

Here is the call graph for this function:

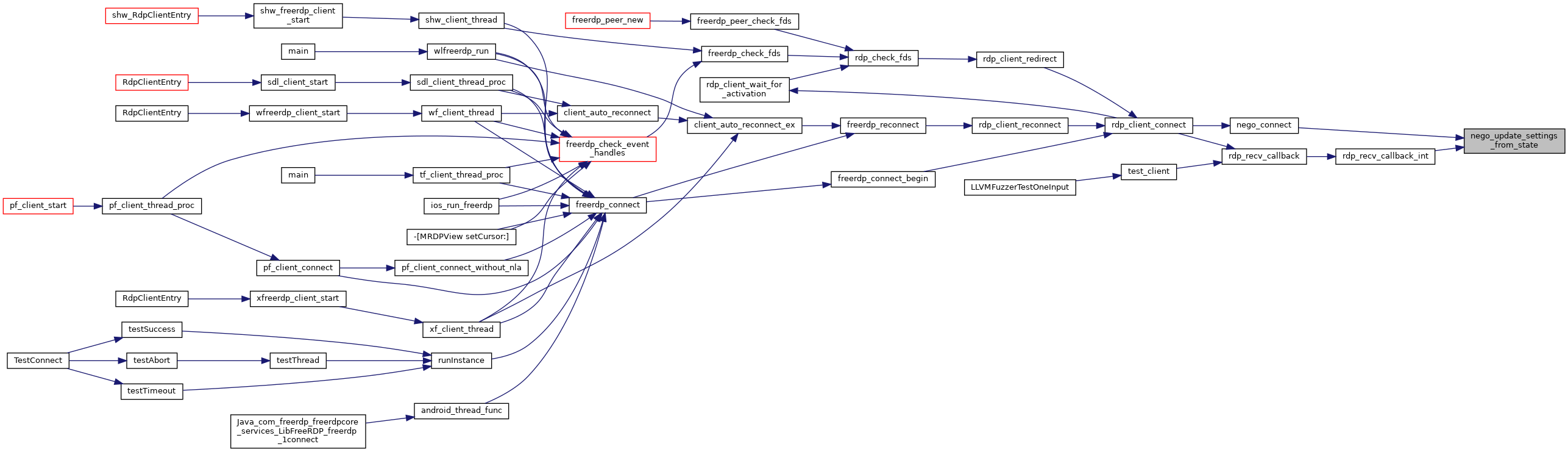

Here is the caller graph for this function:
