This is the FreeRDP settings module. More...

#include <winpr/timezone.h>
#include <winpr/wlog.h>
#include <freerdp/api.h>
#include <freerdp/config.h>
#include <freerdp/types.h>
#include <freerdp/redirection.h>
#include <freerdp/settings_types_private.h>
#include <freerdp/settings_keys.h>
#include <freerdp/settings_types.h>
#include <freerdp/crypto/certificate.h>
#include <freerdp/crypto/privatekey.h>

Macros
#define	FREERDP_SETTINGS_SERVER_MODE 0x00000001

#define	FREERDP_SETTINGS_REMOTE_MODE 0x00000002

Functions
FREERDP_API rdpSettings *	freerdp_settings_new (DWORD flags)
	creates a new setting struct More...

FREERDP_API rdpSettings *	freerdp_settings_clone (const rdpSettings *settings)
	Creates a deep copy of settings. More...

FREERDP_API BOOL	freerdp_settings_copy (rdpSettings dst, const rdpSettings src)
	Deep copies settings from src to dst. More...

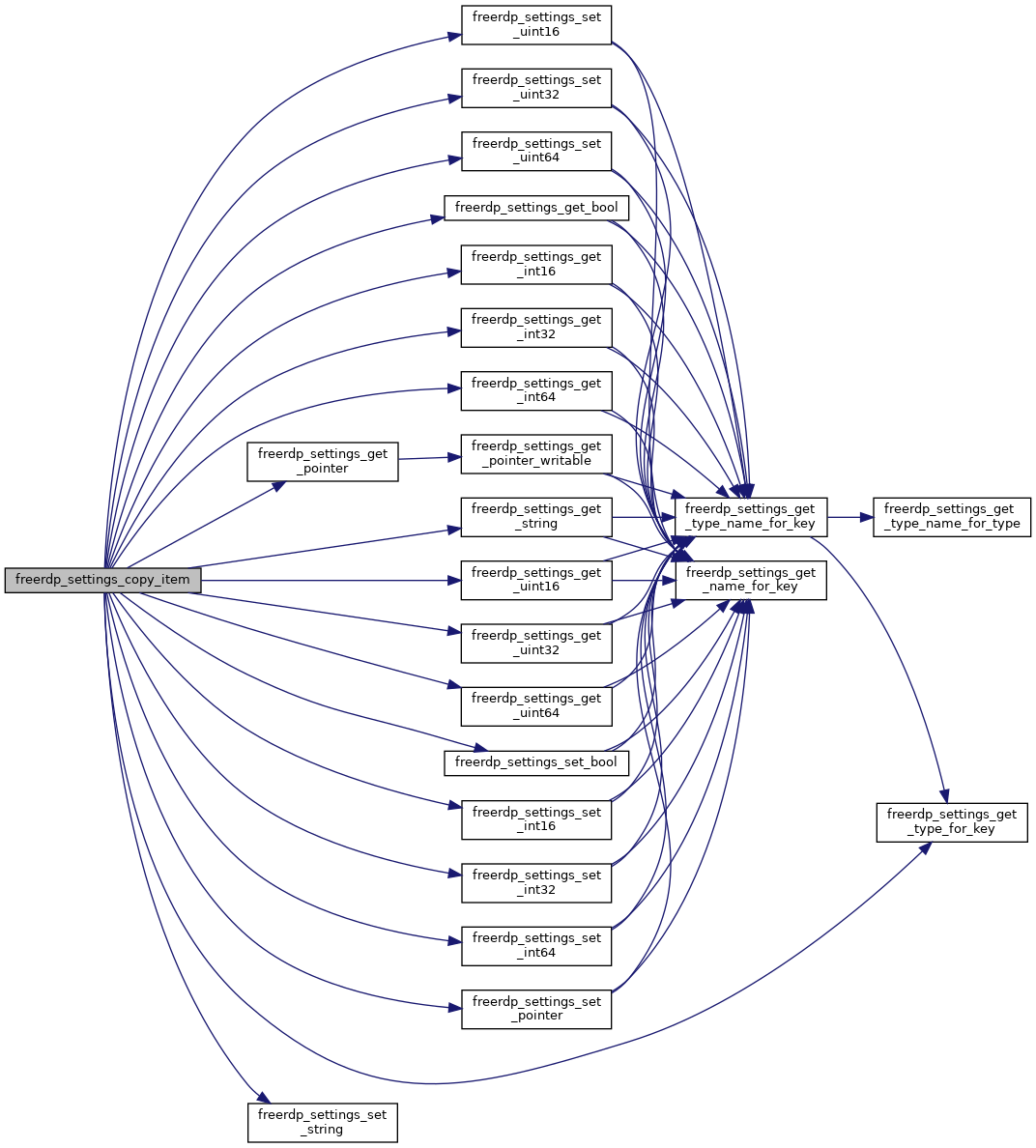

FREERDP_API BOOL	freerdp_settings_copy_item (rdpSettings dst, const rdpSettings src, SSIZE_T id)
	copies one setting identified by id from src to dst More...

FREERDP_API void	freerdp_settings_free (rdpSettings *settings)
	Free a settings struct with all data in it. More...

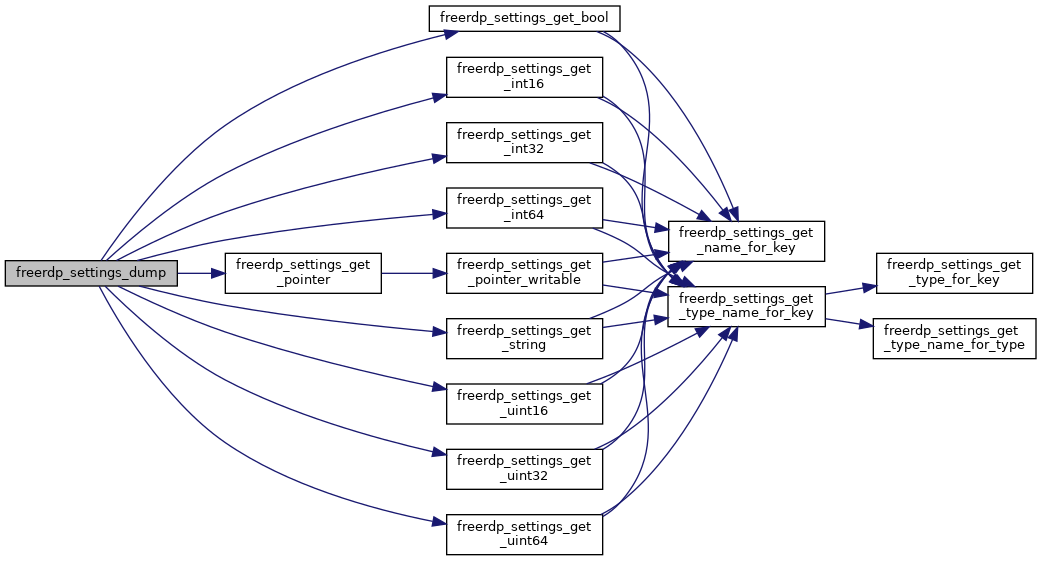

FREERDP_API void	freerdp_settings_dump (wLog log, DWORD level, const rdpSettings settings)
	Dumps the contents of a settings struct to a WLog logger. More...

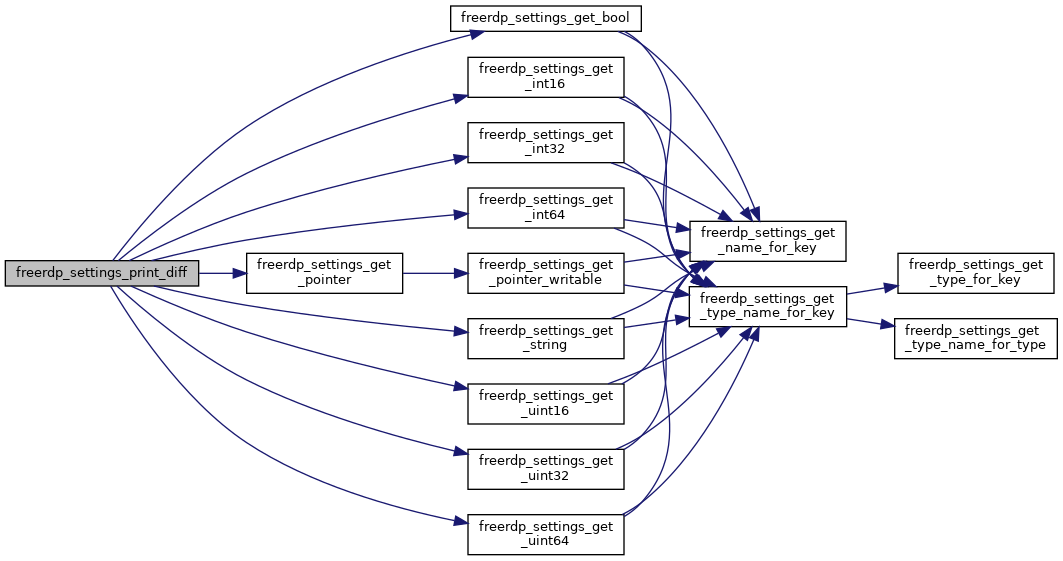

FREERDP_API BOOL	freerdp_settings_print_diff (wLog log, DWORD level, const rdpSettings src, const rdpSettings *other)
	Dumps the difference between two settings structs to a WLog. More...

FREERDP_API ADDIN_ARGV *	freerdp_addin_argv_new (size_t argc, const char *argv[])

FREERDP_API ADDIN_ARGV *	freerdp_addin_argv_clone (const ADDIN_ARGV *args)

FREERDP_API void	freerdp_addin_argv_free (ADDIN_ARGV *args)

FREERDP_API BOOL	freerdp_addin_argv_add_argument (ADDIN_ARGV args, const char argument)

FREERDP_API BOOL	freerdp_addin_argv_add_argument_ex (ADDIN_ARGV args, const char argument, size_t len)

FREERDP_API BOOL	freerdp_addin_argv_del_argument (ADDIN_ARGV args, const char argument)

FREERDP_API int	freerdp_addin_set_argument (ADDIN_ARGV args, const char argument)

FREERDP_API int	freerdp_addin_replace_argument (ADDIN_ARGV args, const char previous, const char *argument)

FREERDP_API int	freerdp_addin_set_argument_value (ADDIN_ARGV args, const char option, const char *value)

FREERDP_API int	freerdp_addin_replace_argument_value (ADDIN_ARGV args, const char previous, const char option, const char value)

FREERDP_API BOOL	freerdp_device_collection_add (rdpSettings settings, RDPDR_DEVICE device)

FREERDP_API BOOL	freerdp_device_collection_del (rdpSettings settings, const RDPDR_DEVICE device)
	Removed a device from the settings, returns ownership of the allocated device to caller. More...

FREERDP_API RDPDR_DEVICE *	freerdp_device_collection_find (rdpSettings settings, const char name)

FREERDP_API RDPDR_DEVICE *	freerdp_device_collection_find_type (rdpSettings *settings, UINT32 type)

FREERDP_API void	freerdp_device_free (RDPDR_DEVICE *device)

FREERDP_API RDPDR_DEVICE *	freerdp_device_new (UINT32 Type, size_t count, const char *args[])

FREERDP_API RDPDR_DEVICE *	freerdp_device_clone (const RDPDR_DEVICE *device)

FREERDP_API BOOL	freerdp_device_equal (const RDPDR_DEVICE one, const RDPDR_DEVICE other)

FREERDP_API void	freerdp_device_collection_free (rdpSettings *settings)

FREERDP_API BOOL	freerdp_static_channel_collection_add (rdpSettings settings, ADDIN_ARGV channel)

FREERDP_API BOOL	freerdp_static_channel_collection_del (rdpSettings settings, const char name)

FREERDP_API ADDIN_ARGV *	freerdp_static_channel_collection_find (rdpSettings settings, const char name)

FREERDP_API void	freerdp_static_channel_collection_free (rdpSettings *settings)

FREERDP_API BOOL	freerdp_dynamic_channel_collection_add (rdpSettings settings, ADDIN_ARGV channel)

FREERDP_API BOOL	freerdp_dynamic_channel_collection_del (rdpSettings settings, const char name)

FREERDP_API ADDIN_ARGV *	freerdp_dynamic_channel_collection_find (const rdpSettings settings, const char name)

FREERDP_API void	freerdp_dynamic_channel_collection_free (rdpSettings *settings)

FREERDP_API void	freerdp_capability_buffer_free (rdpSettings *settings)

FREERDP_API BOOL	freerdp_capability_buffer_copy (rdpSettings settings, const rdpSettings src)

FREERDP_API void	freerdp_server_license_issuers_free (rdpSettings *settings)

FREERDP_API BOOL	freerdp_server_license_issuers_copy (rdpSettings settings, char *addresses, UINT32 count)

FREERDP_API void	freerdp_target_net_addresses_free (rdpSettings *settings)

FREERDP_API BOOL	freerdp_target_net_addresses_copy (rdpSettings settings, char *addresses, UINT32 count)

FREERDP_API void	freerdp_performance_flags_make (rdpSettings *settings)

FREERDP_API void	freerdp_performance_flags_split (rdpSettings *settings)

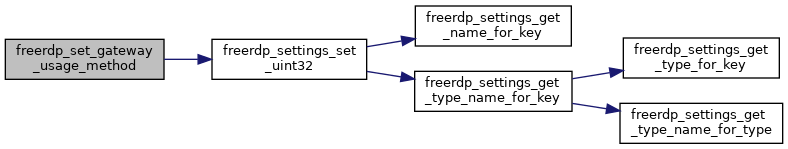

FREERDP_API BOOL	freerdp_set_gateway_usage_method (rdpSettings *settings, UINT32 GatewayUsageMethod)

FREERDP_API void	freerdp_update_gateway_usage_method (rdpSettings *settings, UINT32 GatewayEnabled, UINT32 GatewayBypassLocal)

FREERDP_API BOOL	freerdp_settings_are_valid (const rdpSettings *settings)
	Returns TRUE if settings are in a valid state, FALSE otherwise. More...

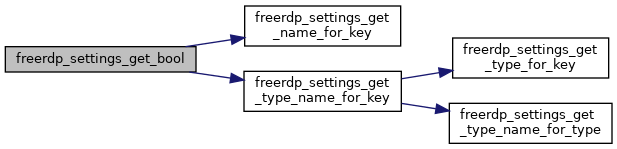

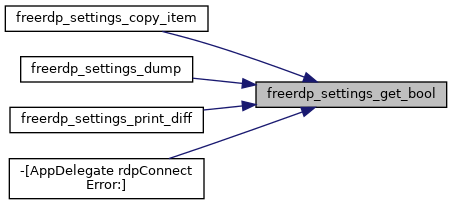

FREERDP_API BOOL	freerdp_settings_get_bool (const rdpSettings *settings, FreeRDP_Settings_Keys_Bool id)
	Returns a boolean settings value. More...

FREERDP_API BOOL	freerdp_settings_set_bool (rdpSettings *settings, FreeRDP_Settings_Keys_Bool id, BOOL param)
	Sets a BOOL settings value. More...

FREERDP_API INT16	freerdp_settings_get_int16 (const rdpSettings *settings, FreeRDP_Settings_Keys_Int16 id)
	Returns a INT16 settings value. More...

FREERDP_API BOOL	freerdp_settings_set_int16 (rdpSettings *settings, FreeRDP_Settings_Keys_Int16 id, INT16 param)
	Sets a INT16 settings value. More...

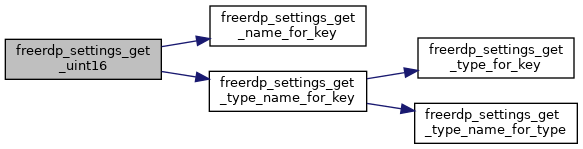

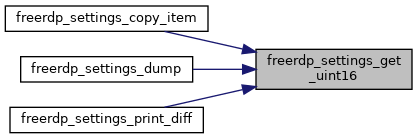

FREERDP_API UINT16	freerdp_settings_get_uint16 (const rdpSettings *settings, FreeRDP_Settings_Keys_UInt16 id)
	Returns a UINT16 settings value. More...

FREERDP_API BOOL	freerdp_settings_set_uint16 (rdpSettings *settings, FreeRDP_Settings_Keys_UInt16 id, UINT16 param)
	Sets a UINT16 settings value. More...

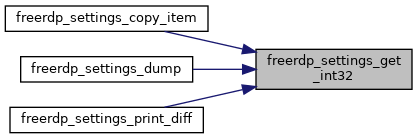

FREERDP_API INT32	freerdp_settings_get_int32 (const rdpSettings *settings, FreeRDP_Settings_Keys_Int32 id)
	Returns a INT32 settings value. More...

FREERDP_API BOOL	freerdp_settings_set_int32 (rdpSettings *settings, FreeRDP_Settings_Keys_Int32 id, INT32 param)
	Sets a INT32 settings value. More...

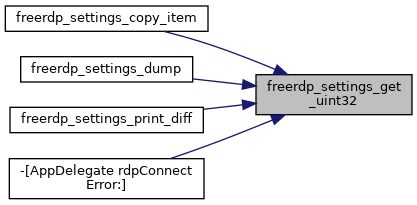

FREERDP_API UINT32	freerdp_settings_get_uint32 (const rdpSettings *settings, FreeRDP_Settings_Keys_UInt32 id)
	Returns a UINT32 settings value. More...

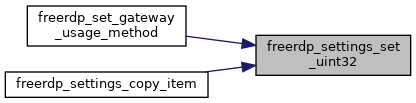

FREERDP_API BOOL	freerdp_settings_set_uint32 (rdpSettings *settings, FreeRDP_Settings_Keys_UInt32 id, UINT32 param)
	Sets a UINT32 settings value. More...

FREERDP_API INT64	freerdp_settings_get_int64 (const rdpSettings *settings, FreeRDP_Settings_Keys_Int64 id)
	Returns a INT64 settings value. More...

FREERDP_API BOOL	freerdp_settings_set_int64 (rdpSettings *settings, FreeRDP_Settings_Keys_Int64 id, INT64 param)
	Sets a INT64 settings value. More...

FREERDP_API UINT64	freerdp_settings_get_uint64 (const rdpSettings *settings, FreeRDP_Settings_Keys_UInt64 id)
	Returns a UINT64 settings value. More...

FREERDP_API BOOL	freerdp_settings_set_uint64 (rdpSettings *settings, FreeRDP_Settings_Keys_UInt64 id, UINT64 param)
	Sets a UINT64 settings value. More...

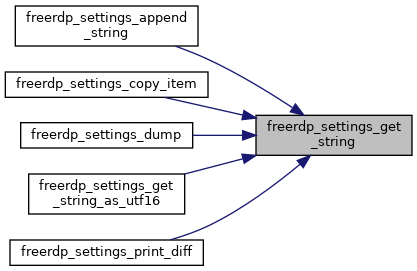

FREERDP_API const char *	freerdp_settings_get_string (const rdpSettings *settings, FreeRDP_Settings_Keys_String id)
	Returns a immutable string settings value. More...

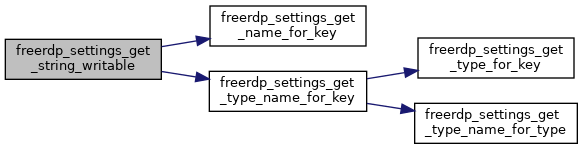

FREERDP_API char *	freerdp_settings_get_string_writable (rdpSettings *settings, FreeRDP_Settings_Keys_String id)
	Returns a string settings value. More...

FREERDP_API BOOL	freerdp_settings_set_string_len (rdpSettings settings, FreeRDP_Settings_Keys_String id, const char param, size_t len)
	Sets a string settings value. The param is copied. More...

FREERDP_API BOOL	freerdp_settings_set_string (rdpSettings settings, FreeRDP_Settings_Keys_String id, const char param)
	Sets a string settings value. The param is copied. More...

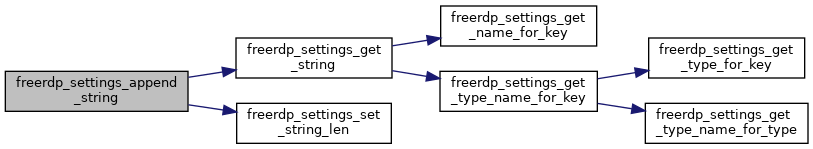

FREERDP_API BOOL	freerdp_settings_append_string (rdpSettings settings, FreeRDP_Settings_Keys_String id, const char separator, const char *param)
	appends a string to a settings value. The param is copied. If the initial value of the setting was not empty, <old value><separator> is created More...

FREERDP_API BOOL	freerdp_settings_set_string_from_utf16 (rdpSettings settings, FreeRDP_Settings_Keys_String id, const WCHAR param)
	Sets a string settings value. The param is converted to UTF-8 and the copy stored. More...

FREERDP_API BOOL	freerdp_settings_set_string_from_utf16N (rdpSettings settings, FreeRDP_Settings_Keys_String id, const WCHAR param, size_t length)
	Sets a string settings value. The param is converted to UTF-8 and the copy stored. More...

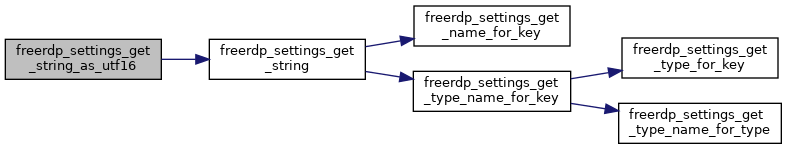

FREERDP_API WCHAR *	freerdp_settings_get_string_as_utf16 (const rdpSettings settings, FreeRDP_Settings_Keys_String id, size_t pCharLen)
	Return an allocated UTF16 string. More...

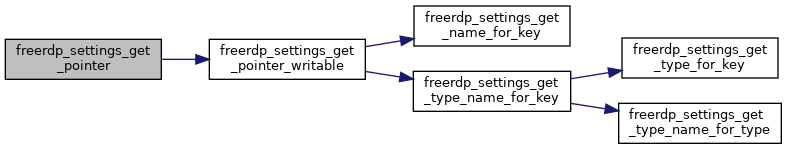

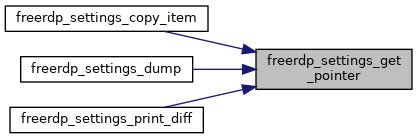

FREERDP_API const void *	freerdp_settings_get_pointer (const rdpSettings *settings, FreeRDP_Settings_Keys_Pointer id)
	Returns a immutable pointer settings value. More...

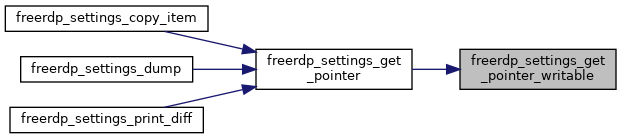

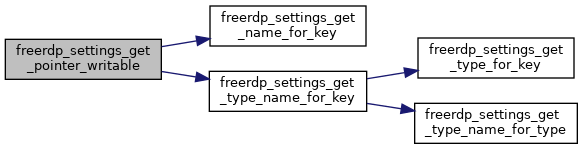

FREERDP_API void *	freerdp_settings_get_pointer_writable (rdpSettings *settings, FreeRDP_Settings_Keys_Pointer id)
	Returns a mutable pointer settings value. More...

FREERDP_API BOOL	freerdp_settings_set_pointer (rdpSettings settings, FreeRDP_Settings_Keys_Pointer id, const void data)
	Set a pointer to value data. More...

FREERDP_API BOOL	freerdp_settings_set_pointer_len (rdpSettings settings, FreeRDP_Settings_Keys_Pointer id, const void data, size_t len)
	Set a pointer to value data. More...

FREERDP_API const void *	freerdp_settings_get_pointer_array (const rdpSettings *settings, FreeRDP_Settings_Keys_Pointer id, size_t offset)

FREERDP_API void *	freerdp_settings_get_pointer_array_writable (const rdpSettings *settings, FreeRDP_Settings_Keys_Pointer id, size_t offset)

FREERDP_API BOOL	freerdp_settings_set_pointer_array (rdpSettings settings, FreeRDP_Settings_Keys_Pointer id, size_t offset, const void data)

FREERDP_API BOOL	freerdp_settings_set_value_for_name (rdpSettings settings, const char name, const char *value)

FREERDP_API SSIZE_T	freerdp_settings_get_key_for_name (const char *value)
	Get a key index for the name string of that key. More...

FREERDP_API SSIZE_T	freerdp_settings_get_type_for_name (const char *value)
	Get a key type for the name string of that key. More...

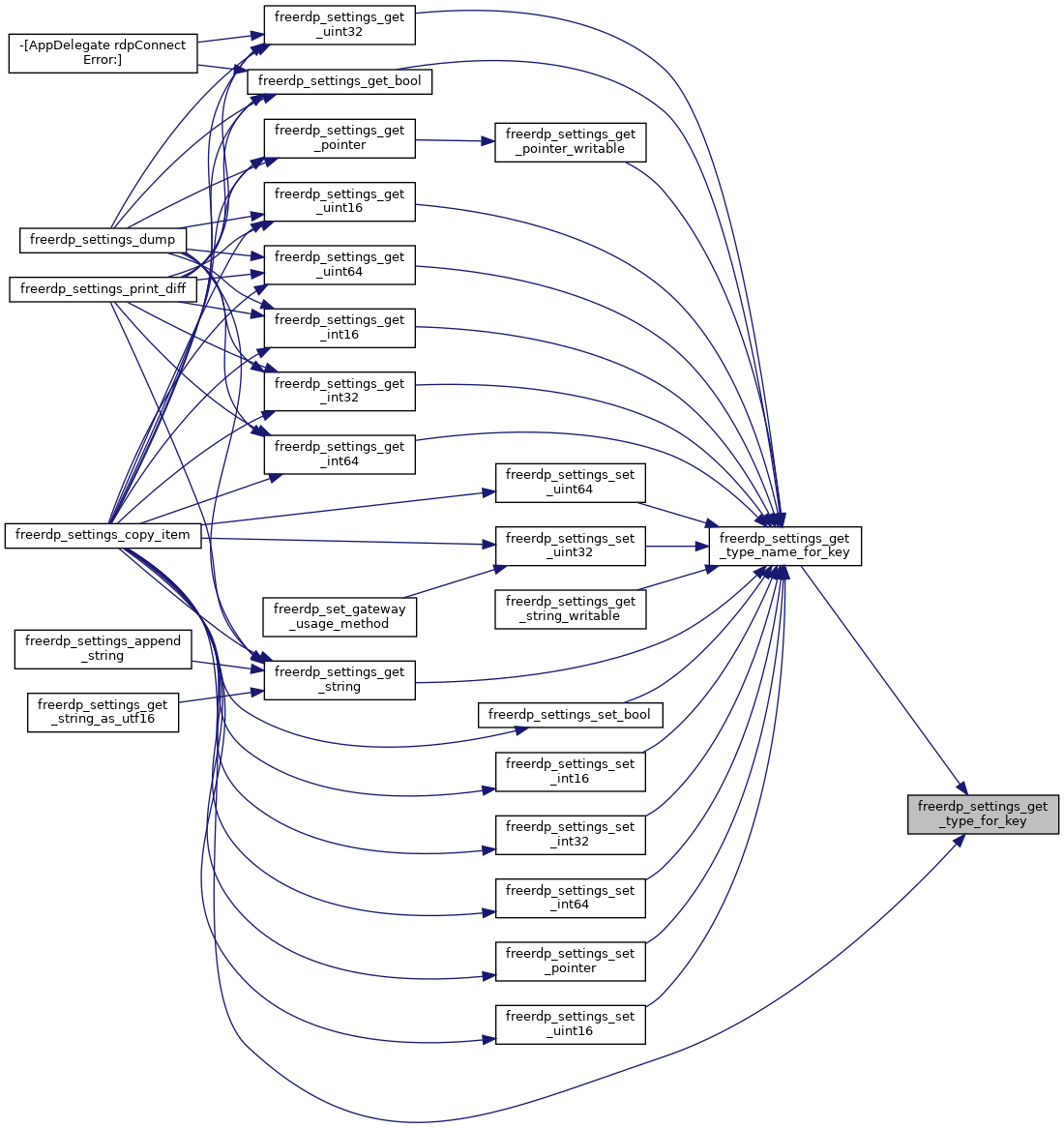

FREERDP_API SSIZE_T	freerdp_settings_get_type_for_key (SSIZE_T key)
	Get a key type for the key index. More...

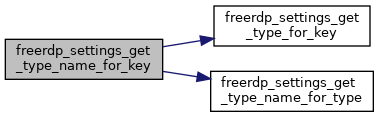

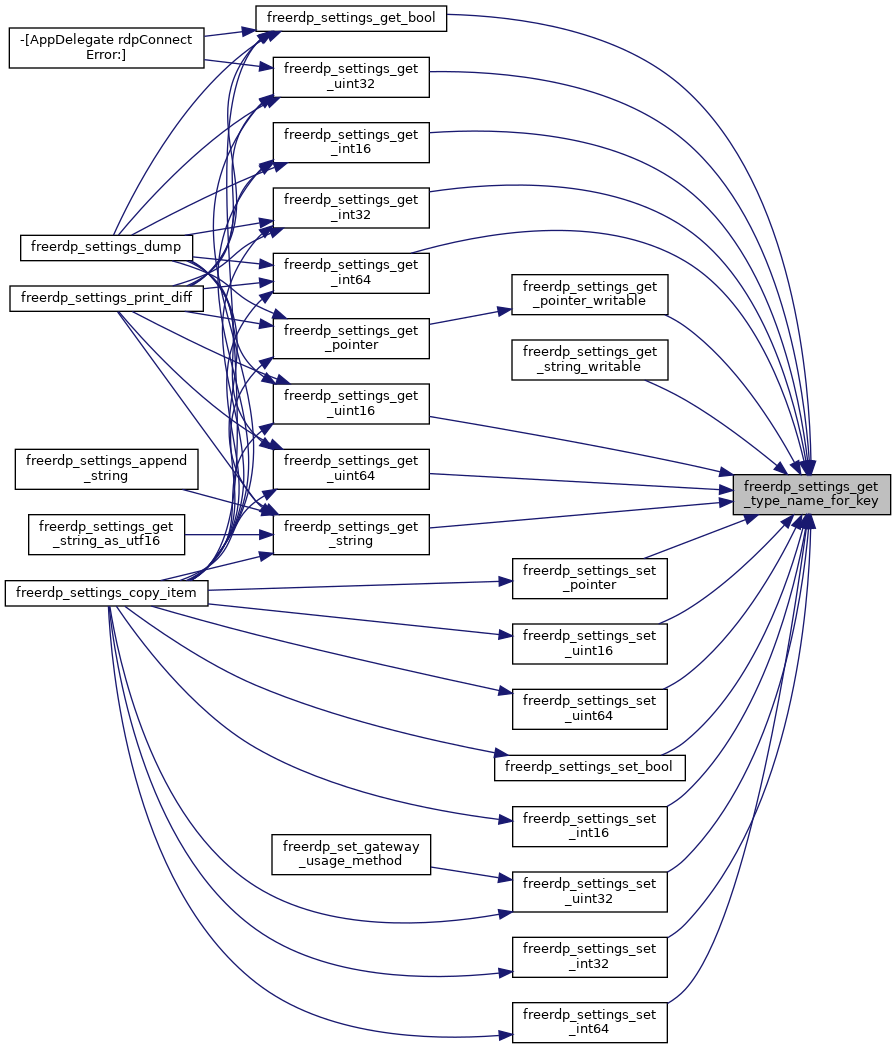

FREERDP_API const char *	freerdp_settings_get_type_name_for_key (SSIZE_T key)
	Returns the type name for a key. More...

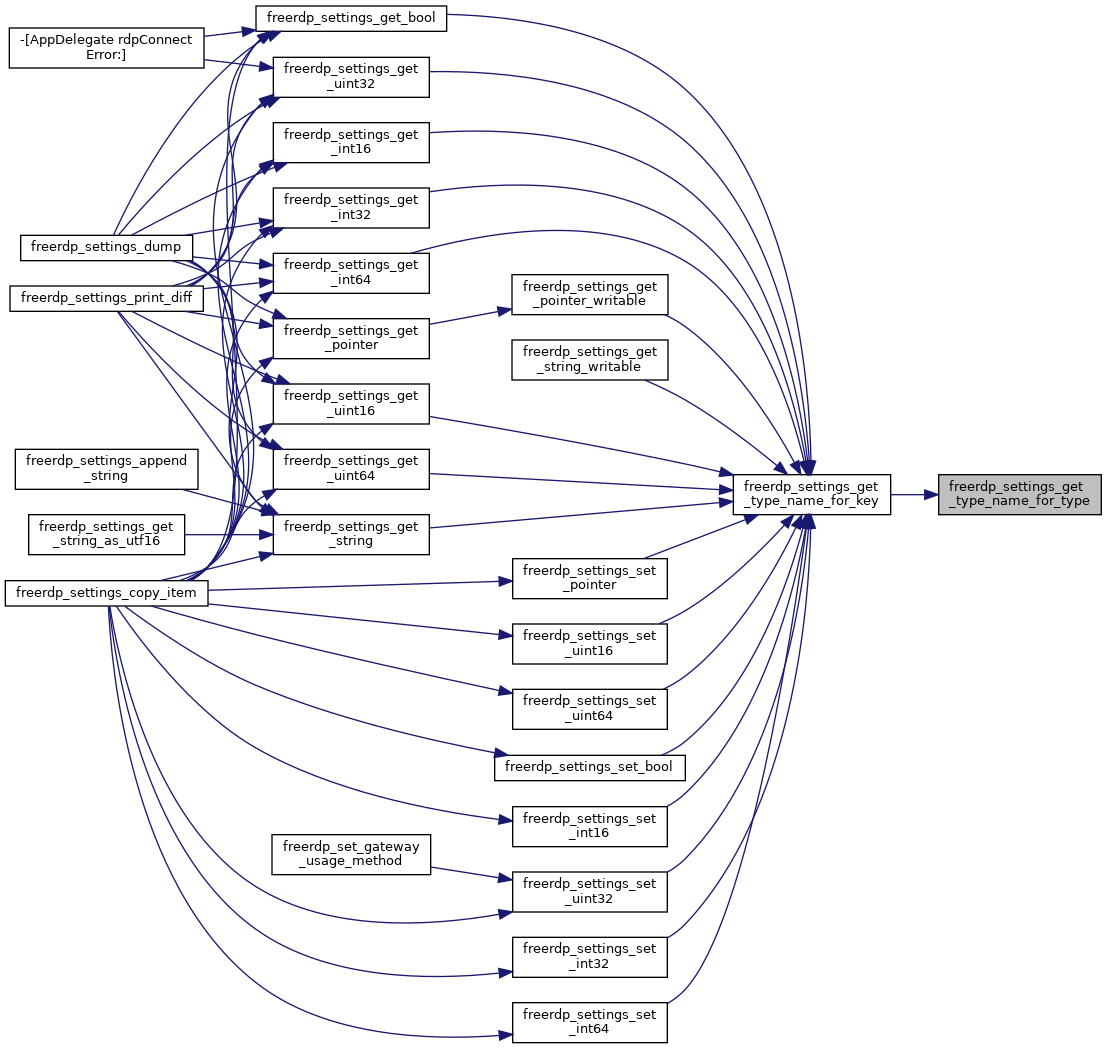

FREERDP_API const char *	freerdp_settings_get_type_name_for_type (SSIZE_T type)
	Returns the type name for a type. More...

FREERDP_API const char *	freerdp_settings_get_name_for_key (SSIZE_T key)
	Returns the type name for a key. More...

FREERDP_API UINT32	freerdp_settings_get_codecs_flags (const rdpSettings *settings)
	helper function to get a mask of supported codec flags. More...

FREERDP_API BOOL	freerdp_settings_update_from_caps (rdpSettings settings, const BYTE capsFlags, const BYTE *capsData, const UINT32 capsSizes, UINT32 capsCount, BOOL serverReceivedCaps)
	Parse capability data and apply to settings. More...

FREERDP_API const char *	freerdp_settings_get_server_name (const rdpSettings *settings)
	A helper function to return the correct server name. More...

FREERDP_API char *	freerdp_rail_support_flags_to_string (UINT32 flags, char *buffer, size_t length)
	Returns a stringified representation of RAIL support flags. More...

FREERDP_API const char *	freerdp_rdp_version_string (UINT32 version)
	Returns a stringified representation of the RDP protocol version. More...

FREERDP_API const char *	freerdp_rdpdr_dtyp_string (UINT32 type)
	Returns a string representation of RDPDR_DTYP_*. More...

FREERDP_API const char *	freerdp_encryption_level_string (UINT32 EncryptionLevel)

FREERDP_API const char *	freerdp_encryption_methods_string (UINT32 EncryptionLevel, char *buffer, size_t size)

FREERDP_API const char *	freerdp_supported_color_depths_string (UINT16 mask, char *buffer, size_t size)
	returns a string representation of RNS_UD_XXBPP_SUPPORT values More...

Detailed Description

This is the FreeRDP settings module.

FreeRDP: A Remote Desktop Protocol Implementation RDP Settings

Copyright 2009-2011 Jay Sorg Copyright 2010-2012 Marc-Andre Moreau marca.nosp@m.ndre.nosp@m..more.nosp@m.au@g.nosp@m.mail..nosp@m.com Copyright 2016 Armin Novak armin.nosp@m..nov.nosp@m.ak@gm.nosp@m.ail..nosp@m.com Copyright 2023 Armin Novak anova.nosp@m.k@th.nosp@m.incas.nosp@m.t.co.nosp@m.m Copyright 2023 Thincast Technologies GmbH

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Settings are used to store configuration data for an RDP connection. There are 3 different settings for each client and server:

The initial connection supplied by the user
The settings sent from client or server during capability exchange
The settings merged from the capability exchange and the initial configuration.

The lifetime of the settings is as follows:

Initial configuration is saved and will be valid for the whole application lifecycle
The client or server settings from the other end are valid from capability exchange until the connection is ended (disconnect/redirect/...)
The merged settings are created from the initial configuration and server settings and have the same lifetime, until the connection ends

So, when accessing the settings always ensure to know which one you are operating on! (this is especially important for the proxy where you have a RDP client and RDP server in the same application context)

Macro Definition Documentation

◆ FREERDP_SETTINGS_REMOTE_MODE

#define FREERDP_SETTINGS_REMOTE_MODE 0x00000002

◆ FREERDP_SETTINGS_SERVER_MODE

#define FREERDP_SETTINGS_SERVER_MODE 0x00000001

rdpSettings creation flags

Function Documentation

◆ freerdp_addin_argv_add_argument()

FREERDP_API BOOL freerdp_addin_argv_add_argument	(	ADDIN_ARGV *	args,
		const char *	argument
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_argv_add_argument_ex()

FREERDP_API BOOL freerdp_addin_argv_add_argument_ex	(	ADDIN_ARGV *	args,
		const char *	argument,
		size_t	len
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_argv_clone()

FREERDP_API ADDIN_ARGV* freerdp_addin_argv_clone ( const ADDIN_ARGV * args )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_argv_del_argument()

FREERDP_API BOOL freerdp_addin_argv_del_argument	(	ADDIN_ARGV *	args,
		const char *	argument
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_argv_free()

FREERDP_API void freerdp_addin_argv_free ( ADDIN_ARGV * args )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_argv_new()

FREERDP_API ADDIN_ARGV* freerdp_addin_argv_new	(	size_t	argc,
		const char *	argv[]
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_replace_argument()

FREERDP_API int freerdp_addin_replace_argument	(	ADDIN_ARGV *	args,
		const char *	previous,
		const char *	argument
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_replace_argument_value()

FREERDP_API int freerdp_addin_replace_argument_value	(	ADDIN_ARGV *	args,
		const char *	previous,
		const char *	option,
		const char *	value
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_set_argument()

FREERDP_API int freerdp_addin_set_argument	(	ADDIN_ARGV *	args,
		const char *	argument
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_addin_set_argument_value()

FREERDP_API int freerdp_addin_set_argument_value	(	ADDIN_ARGV *	args,
		const char *	option,
		const char *	value
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_capability_buffer_copy()

FREERDP_API BOOL freerdp_capability_buffer_copy	(	rdpSettings *	settings,
		const rdpSettings *	src
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_capability_buffer_free()

FREERDP_API void freerdp_capability_buffer_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_clone()

FREERDP_API RDPDR_DEVICE* freerdp_device_clone ( const RDPDR_DEVICE * device )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_collection_add()

FREERDP_API BOOL freerdp_device_collection_add	(	rdpSettings *	settings,
		RDPDR_DEVICE *	device
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_collection_del()

FREERDP_API BOOL freerdp_device_collection_del	(	rdpSettings *	settings,
		const RDPDR_DEVICE *	device
	)

Removed a device from the settings, returns ownership of the allocated device to caller.

Parameters

settings	the settings to remove the device from
device	the device to remove

Returns: TRUE if the device was removed, FALSE if device was not found or is NULL

Here is the caller graph for this function:

◆ freerdp_device_collection_find()

FREERDP_API RDPDR_DEVICE* freerdp_device_collection_find	(	rdpSettings *	settings,
		const char *	name
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_collection_find_type()

FREERDP_API RDPDR_DEVICE* freerdp_device_collection_find_type	(	rdpSettings *	settings,
		UINT32	type
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_collection_free()

FREERDP_API void freerdp_device_collection_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_equal()

FREERDP_API BOOL freerdp_device_equal	(	const RDPDR_DEVICE *	one,
		const RDPDR_DEVICE *	other
	)

Here is the caller graph for this function:

◆ freerdp_device_free()

FREERDP_API void freerdp_device_free ( RDPDR_DEVICE * device )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_device_new()

FREERDP_API RDPDR_DEVICE* freerdp_device_new	(	UINT32	Type,
		size_t	count,
		const char *	args[]
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_dynamic_channel_collection_add()

FREERDP_API BOOL freerdp_dynamic_channel_collection_add	(	rdpSettings *	settings,
		ADDIN_ARGV *	channel
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_dynamic_channel_collection_del()

FREERDP_API BOOL freerdp_dynamic_channel_collection_del	(	rdpSettings *	settings,
		const char *	name
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_dynamic_channel_collection_find()

FREERDP_API ADDIN_ARGV* freerdp_dynamic_channel_collection_find	(	const rdpSettings *	settings,
		const char *	name
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_dynamic_channel_collection_free()

FREERDP_API void freerdp_dynamic_channel_collection_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_encryption_level_string()

FREERDP_API const char* freerdp_encryption_level_string ( UINT32 EncryptionLevel )

◆ freerdp_encryption_methods_string()

FREERDP_API const char* freerdp_encryption_methods_string	(	UINT32	EncryptionLevel,
		char *	buffer,
		size_t	size
	)

Here is the call graph for this function:

◆ freerdp_performance_flags_make()

FREERDP_API void freerdp_performance_flags_make ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_performance_flags_split()

FREERDP_API void freerdp_performance_flags_split ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_rail_support_flags_to_string()

FREERDP_API char* freerdp_rail_support_flags_to_string	(	UINT32	flags,
		char *	buffer,
		size_t	length
	)

Returns a stringified representation of RAIL support flags.

Parameters

flags	The flags to stringify
buffer	A pointer to the string buffer to write to
length	The size of the string buffer

Returns: A pointer to buffer for success, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_rdp_version_string()

FREERDP_API const char* freerdp_rdp_version_string ( UINT32 version )

Returns a stringified representation of the RDP protocol version.

Parameters

version The RDP protocol version number.

Returns: A string representation of the protocol version as "RDP_VERSION_10_11" or "RDP_VERSION_UNKNOWN" for invalid/unknown versions

Here is the call graph for this function:

◆ freerdp_rdpdr_dtyp_string()

FREERDP_API const char* freerdp_rdpdr_dtyp_string ( UINT32 type )

Returns a string representation of RDPDR_DTYP_*.

Parameters

type	The integer of the RDPDR_DTYP_* to stringify

Returns: A string representation of the RDPDR_DTYP_* or "RDPDR_DTYP_UNKNOWN"

Here is the caller graph for this function:

◆ freerdp_server_license_issuers_copy()

FREERDP_API BOOL freerdp_server_license_issuers_copy	(	rdpSettings *	settings,
		char **	addresses,
		UINT32	count
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_server_license_issuers_free()

FREERDP_API void freerdp_server_license_issuers_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_set_gateway_usage_method()

FREERDP_API BOOL freerdp_set_gateway_usage_method	(	rdpSettings *	settings,
		UINT32	GatewayUsageMethod
	)

This corresponds to "Automatically detect RD Gateway server settings", which means the client attempts to use gateway group policy settings http://technet.microsoft.com/en-us/library/cc770601.aspx

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_append_string()

FREERDP_API BOOL freerdp_settings_append_string	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		const char *	separator,
		const char *	param
	)

appends a string to a settings value. The param is copied. If the initial value of the setting was not empty, <old value><separator> is created

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
separator	The separator string to use. May be NULL (no separator)
param	The value to append

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_are_valid()

FREERDP_API BOOL freerdp_settings_are_valid ( const rdpSettings * settings )

Returns TRUE if settings are in a valid state, FALSE otherwise.

This function is meant to replace tideous return checks for freerdp_settings_set_* with a single check after these calls.

Parameters

settings the settings instance to check

Returns: TRUE if valid, FALSE otherwise

◆ freerdp_settings_clone()

FREERDP_API rdpSettings* freerdp_settings_clone ( const rdpSettings * settings )

Creates a deep copy of settings.

Parameters

settings A pointer to a settings struct to copy. May be NULL (returns NULL)

Returns: A newly allocated copy of settings or NULL

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_copy()

FREERDP_API BOOL freerdp_settings_copy	(	rdpSettings *	dst,
		const rdpSettings *	src
	)

Deep copies settings from src to dst.

The function frees up all allocated data in dst before copying the data from src

Parameters

dst	A pointer for the settings to copy data to. May be NULL (fails copy)
src	A pointer to the settings to copy. May be NULL (fails copy)

Returns: TRUE for success, FALSE for failure.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_copy_item()

FREERDP_API BOOL freerdp_settings_copy_item	(	rdpSettings *	dst,
		const rdpSettings *	src,
		SSIZE_T	id
	)

copies one setting identified by id from src to dst

The function frees up all allocated data in dst before copying the data from src

Parameters

dst	A pointer for the settings to copy data to. May be NULL (fails copy)
src	A pointer to the settings to copy. May be NULL (fails copy)
id	The settings identifier to copy

Returns: TRUE for success, FALSE for failure.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_dump()

FREERDP_API void freerdp_settings_dump	(	wLog *	log,
		DWORD	level,
		const rdpSettings *	settings
	)

Dumps the contents of a settings struct to a WLog logger.

Parameters

log	The logger to write to, must not be NULL
level	The WLog level to use for the log entries
settings	A pointer to the settings to dump. May be NULL.

Here is the call graph for this function:

◆ freerdp_settings_free()

FREERDP_API void freerdp_settings_free ( rdpSettings * settings )

Free a settings struct with all data in it.

Parameters

settings A pointer to the settings to free, May be NULL

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_bool()

FREERDP_API BOOL freerdp_settings_get_bool	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Bool	id
	)

Returns a boolean settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the boolean key

Here is the call graph for this function:

◆ freerdp_settings_get_codecs_flags()

FREERDP_API UINT32 freerdp_settings_get_codecs_flags ( const rdpSettings * settings )

helper function to get a mask of supported codec flags.

This function checks various settings to create a mask of supported codecs FreeRDP_CodecFlags defines the codecs

Parameters

settings the settings to check

Returns: a mask of supported codecs

Here is the caller graph for this function:

◆ freerdp_settings_get_int16()

FREERDP_API INT16 freerdp_settings_get_int16	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int16	id
	)

Returns a INT16 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the INT16 key

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_int32()

FREERDP_API INT32 freerdp_settings_get_int32	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int32	id
	)

Returns a INT32 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the INT32 key

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_int64()

FREERDP_API INT64 freerdp_settings_get_int64	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int64	id
	)

Returns a INT64 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the INT64 key

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_key_for_name()

FREERDP_API SSIZE_T freerdp_settings_get_key_for_name ( const char * value )

Get a key index for the name string of that key.

Parameters

value A key name string like FreeRDP_ServerMode

Returns: The key index or -1 in case of an error (e.g. name does not exist)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_name_for_key()

FREERDP_API const char* freerdp_settings_get_name_for_key ( SSIZE_T key )

Returns the type name for a key.

Parameters

key	the key number to stringify

Returns: the name of the key or NULL

Here is the caller graph for this function:

◆ freerdp_settings_get_pointer()

FREERDP_API const void* freerdp_settings_get_pointer	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id
	)

Returns a immutable pointer settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the immutable pointer value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_pointer_array()

FREERDP_API const void* freerdp_settings_get_pointer_array	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id,
		size_t	offset
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_pointer_array_writable()

FREERDP_API void* freerdp_settings_get_pointer_array_writable	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id,
		size_t	offset
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_pointer_writable()

FREERDP_API void* freerdp_settings_get_pointer_writable	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id
	)

Returns a mutable pointer settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the mutable pointer value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_server_name()

FREERDP_API const char* freerdp_settings_get_server_name ( const rdpSettings * settings )

A helper function to return the correct server name.

The server name might be in key FreeRDP_ServerHostname or if used in FreeRDP_UserSpecifiedServerName. This function returns the correct name to use.

Parameters

settings The settings to query, must not be NULL.

Returns: A string pointer or NULL in case of failure.

Here is the caller graph for this function:

◆ freerdp_settings_get_string()

FREERDP_API const char* freerdp_settings_get_string	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id
	)

Returns a immutable string settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the immutable string pointer

Here is the call graph for this function:

◆ freerdp_settings_get_string_as_utf16()

FREERDP_API WCHAR* freerdp_settings_get_string_as_utf16	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		size_t *	pCharLen
	)

Return an allocated UTF16 string.

Parameters

settings	A pointer to the settings struct to use
id	The settings identifier

Returns: An allocated, '\0' terminated WCHAR string or NULL

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_string_writable()

FREERDP_API char* freerdp_settings_get_string_writable	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id
	)

Returns a string settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the string pointer

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_type_for_key()

FREERDP_API SSIZE_T freerdp_settings_get_type_for_key ( SSIZE_T key )

Get a key type for the key index.

Parameters

key	The key index like FreeRDP_ServerMode

Returns: The key type (e.g. FREERDP_SETTINGS_TYPE_BOOL) or -1 in case of an error (e.g. name does not exist)

Here is the caller graph for this function:

◆ freerdp_settings_get_type_for_name()

FREERDP_API SSIZE_T freerdp_settings_get_type_for_name ( const char * value )

Get a key type for the name string of that key.

Parameters

value A key name string like FreeRDP_ServerMode

Returns: The key type (e.g. FREERDP_SETTINGS_TYPE_BOOL) or -1 in case of an error (e.g. name does not exist)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_type_name_for_key()

FREERDP_API const char* freerdp_settings_get_type_name_for_key ( SSIZE_T key )

Returns the type name for a key.

Parameters

key	the key number to stringify

Returns: the type name of the key or FREERDP_SETTINGS_TYPE_UNKNOWN

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_type_name_for_type()

FREERDP_API const char* freerdp_settings_get_type_name_for_type ( SSIZE_T type )

Returns the type name for a type.

Parameters

type	the type to stringify

Returns: the name of the key or FREERDP_SETTINGS_TYPE_UNKNOWN

Here is the caller graph for this function:

◆ freerdp_settings_get_uint16()

FREERDP_API UINT16 freerdp_settings_get_uint16	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt16	id
	)

Returns a UINT16 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the UINT16 key

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_get_uint32()

FREERDP_API UINT32 freerdp_settings_get_uint32	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt32	id
	)

Returns a UINT32 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the UINT32 key

Here is the call graph for this function:

◆ freerdp_settings_get_uint64()

FREERDP_API UINT64 freerdp_settings_get_uint64	(	const rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt64	id
	)

Returns a UINT64 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query

Returns: the value of the UINT64 key

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_new()

FREERDP_API rdpSettings* freerdp_settings_new ( DWORD flags )

creates a new setting struct

Parameters

flags Flags for creation, use FREERDP_SETTINGS_SERVER_MODE for server settings, 0 for client.

Returns: A newly allocated settings struct or NULL

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_print_diff()

FREERDP_API BOOL freerdp_settings_print_diff	(	wLog *	log,
		DWORD	level,
		const rdpSettings *	src,
		const rdpSettings *	other
	)

Dumps the difference between two settings structs to a WLog.

Parameters

log	The logger to write to, must not be NULL.
level	The WLog level to use for the log entries.
src	A pointer to the settings to dump. May be NULL.
other	A pointer to the settings to dump. May be NULL.

Returns: TRUE if not equal, FALSE otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_bool()

FREERDP_API BOOL freerdp_settings_set_bool	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Bool	id,
		BOOL	param
	)

Sets a BOOL settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

◆ freerdp_settings_set_int16()

FREERDP_API BOOL freerdp_settings_set_int16	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int16	id,
		INT16	param
	)

Sets a INT16 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_int32()

FREERDP_API BOOL freerdp_settings_set_int32	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int32	id,
		INT32	param
	)

Sets a INT32 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_int64()

FREERDP_API BOOL freerdp_settings_set_int64	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Int64	id,
		INT64	param
	)

Sets a INT64 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_pointer()

FREERDP_API BOOL freerdp_settings_set_pointer	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id,
		const void *	data
	)

Set a pointer to value data.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to update
data	The data to set (direct update, no copy created, previous value overwritten)

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_pointer_array()

FREERDP_API BOOL freerdp_settings_set_pointer_array	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id,
		size_t	offset,
		const void *	data
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_pointer_len()

FREERDP_API BOOL freerdp_settings_set_pointer_len	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_Pointer	id,
		const void *	data,
		size_t	len
	)

Set a pointer to value data.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to update
data	The data to set (copy created, previous value freed)

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_string()

FREERDP_API BOOL freerdp_settings_set_string	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		const char *	param
	)

Sets a string settings value. The param is copied.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set. If NULL removes the old entry, otherwise a copy is created.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

◆ freerdp_settings_set_string_from_utf16()

FREERDP_API BOOL freerdp_settings_set_string_from_utf16	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		const WCHAR *	param
	)

Sets a string settings value. The param is converted to UTF-8 and the copy stored.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set. If NULL removes the old entry, otherwise a copy is created.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_string_from_utf16N()

FREERDP_API BOOL freerdp_settings_set_string_from_utf16N	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		const WCHAR *	param,
		size_t	length
	)

Sets a string settings value. The param is converted to UTF-8 and the copy stored.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set. If NULL removes the old entry, otherwise a copy is created.
length	The length of the WCHAR string in number of WCHAR characters

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_string_len()

FREERDP_API BOOL freerdp_settings_set_string_len	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_String	id,
		const char *	param,
		size_t	len
	)

Sets a string settings value. The param is copied.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set. If NULL allocates an empty string buffer of len size, otherwise a copy is created.
len	The length of param, 0 to remove the old entry.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_uint16()

FREERDP_API BOOL freerdp_settings_set_uint16	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt16	id,
		UINT16	param
	)

Sets a UINT16 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_uint32()

FREERDP_API BOOL freerdp_settings_set_uint32	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt32	id,
		UINT32	param
	)

Sets a UINT32 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

◆ freerdp_settings_set_uint64()

FREERDP_API BOOL freerdp_settings_set_uint64	(	rdpSettings *	settings,
		FreeRDP_Settings_Keys_UInt64	id,
		UINT64	param
	)

Sets a UINT64 settings value.

Parameters

settings	A pointer to the settings to query, must not be NULL.
id	The key to query
param	The value to set.

Returns: TRUE for success, FALSE for failure

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_set_value_for_name()

FREERDP_API BOOL freerdp_settings_set_value_for_name	(	rdpSettings *	settings,
		const char *	name,
		const char *	value
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_settings_update_from_caps()

FREERDP_API BOOL freerdp_settings_update_from_caps	(	rdpSettings *	settings,
		const BYTE *	capsFlags,
		const BYTE **	capsData,
		const UINT32 *	capsSizes,
		UINT32	capsCount,
		BOOL	serverReceivedCaps
	)

Parse capability data and apply to settings.

The capability message is stored in raw form in the settings, the data parsed and applied to the settings.

Parameters

settings	A pointer to the settings to use
capsFlags	A pointer to the capablity flags, must have capsCount fields
capsData	A pointer array to the RAW capability data, must have capsCount fields
capsSizes	A pointer to an array of RAW capability sizes, must have capsCount fields
capsCount	The number of capabilities contained in the RAW data
serverReceivedCaps	Indicates if the parser should assume to be a server or client instance

Returns: TRUE for success, FALSE in case of an error

Here is the call graph for this function:

◆ freerdp_static_channel_collection_add()

FREERDP_API BOOL freerdp_static_channel_collection_add	(	rdpSettings *	settings,
		ADDIN_ARGV *	channel
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_static_channel_collection_del()

FREERDP_API BOOL freerdp_static_channel_collection_del	(	rdpSettings *	settings,
		const char *	name
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_static_channel_collection_find()

FREERDP_API ADDIN_ARGV* freerdp_static_channel_collection_find	(	rdpSettings *	settings,
		const char *	name
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_static_channel_collection_free()

FREERDP_API void freerdp_static_channel_collection_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_supported_color_depths_string()

FREERDP_API const char* freerdp_supported_color_depths_string	(	UINT16	mask,
		char *	buffer,
		size_t	size
	)

returns a string representation of RNS_UD_XXBPP_SUPPORT values

return A string reprenentation of the bitmask.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_target_net_addresses_copy()

FREERDP_API BOOL freerdp_target_net_addresses_copy	(	rdpSettings *	settings,
		char **	addresses,
		UINT32	count
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_target_net_addresses_free()

FREERDP_API void freerdp_target_net_addresses_free ( rdpSettings * settings )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freerdp_update_gateway_usage_method()

FREERDP_API void freerdp_update_gateway_usage_method	(	rdpSettings *	settings,
		UINT32	GatewayEnabled,
		UINT32	GatewayBypassLocal
	)

Here is the call graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ FREERDP_SETTINGS_REMOTE_MODE

◆ FREERDP_SETTINGS_SERVER_MODE

Function Documentation

◆ freerdp_addin_argv_add_argument()

◆ freerdp_addin_argv_add_argument_ex()

◆ freerdp_addin_argv_clone()

◆ freerdp_addin_argv_del_argument()

◆ freerdp_addin_argv_free()

◆ freerdp_addin_argv_new()

◆ freerdp_addin_replace_argument()

◆ freerdp_addin_replace_argument_value()

◆ freerdp_addin_set_argument()

◆ freerdp_addin_set_argument_value()

◆ freerdp_capability_buffer_copy()

◆ freerdp_capability_buffer_free()

◆ freerdp_device_clone()

◆ freerdp_device_collection_add()

◆ freerdp_device_collection_del()

◆ freerdp_device_collection_find()

◆ freerdp_device_collection_find_type()

◆ freerdp_device_collection_free()

◆ freerdp_device_equal()

◆ freerdp_device_free()

◆ freerdp_device_new()

◆ freerdp_dynamic_channel_collection_add()

◆ freerdp_dynamic_channel_collection_del()

◆ freerdp_dynamic_channel_collection_find()

◆ freerdp_dynamic_channel_collection_free()

◆ freerdp_encryption_level_string()

◆ freerdp_encryption_methods_string()

◆ freerdp_performance_flags_make()

◆ freerdp_performance_flags_split()

◆ freerdp_rail_support_flags_to_string()

◆ freerdp_rdp_version_string()

◆ freerdp_rdpdr_dtyp_string()

◆ freerdp_server_license_issuers_copy()

◆ freerdp_server_license_issuers_free()

◆ freerdp_set_gateway_usage_method()

◆ freerdp_settings_append_string()

◆ freerdp_settings_are_valid()

◆ freerdp_settings_clone()

◆ freerdp_settings_copy()

◆ freerdp_settings_copy_item()

◆ freerdp_settings_dump()

◆ freerdp_settings_free()

◆ freerdp_settings_get_bool()

◆ freerdp_settings_get_codecs_flags()

◆ freerdp_settings_get_int16()

◆ freerdp_settings_get_int32()

◆ freerdp_settings_get_int64()

◆ freerdp_settings_get_key_for_name()

◆ freerdp_settings_get_name_for_key()

◆ freerdp_settings_get_pointer()

◆ freerdp_settings_get_pointer_array()

◆ freerdp_settings_get_pointer_array_writable()

◆ freerdp_settings_get_pointer_writable()

◆ freerdp_settings_get_server_name()

◆ freerdp_settings_get_string()

◆ freerdp_settings_get_string_as_utf16()

◆ freerdp_settings_get_string_writable()

◆ freerdp_settings_get_type_for_key()

◆ freerdp_settings_get_type_for_name()

◆ freerdp_settings_get_type_name_for_key()

◆ freerdp_settings_get_type_name_for_type()

◆ freerdp_settings_get_uint16()

◆ freerdp_settings_get_uint32()

◆ freerdp_settings_get_uint64()

◆ freerdp_settings_new()

◆ freerdp_settings_print_diff()

◆ freerdp_settings_set_bool()

◆ freerdp_settings_set_int16()

◆ freerdp_settings_set_int32()

◆ freerdp_settings_set_int64()

◆ freerdp_settings_set_pointer()

◆ freerdp_settings_set_pointer_array()

◆ freerdp_settings_set_pointer_len()
