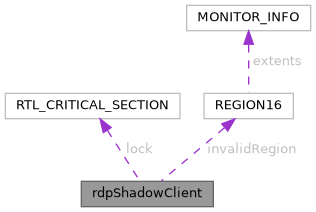

Collaboration diagram for rdpShadowClient:

[legend]

Data Fields
rdpContext	context

HANDLE	thread

BOOL	activated

BOOL	first_frame

BOOL	inLobby

BOOL	mayView

BOOL	mayInteract

BOOL	suppressOutput

UINT16	surfaceId

wMessageQueue *	MsgQueue

CRITICAL_SECTION	lock

REGION16	invalidRegion

rdpShadowServer *	server

rdpShadowEncoder *	encoder

rdpShadowSubsystem *	subsystem

UINT32	pointerX

UINT32	pointerY

HANDLE	vcm

EncomspServerContext *	encomsp

RemdeskServerContext *	remdesk

RdpsndServerContext *	rdpsnd

RdpgfxServerContext *	rdpgfx

BOOL	resizeRequested

UINT32	resizeWidth

UINT32	resizeHeight

BOOL	areGfxCapsReady

RDPGFX_CAPSET	confirmedCaps

wMessageQueue *	SoundQueue

HANDLE	soundThread

CRITICAL_SECTION	vcmLock

BYTE	keysDown [128]

Detailed Description

FreeRDP: A Remote Desktop Protocol Implementation Session Shadowing

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition at line 135 of file include/freerdp/server/shadow.h.

Field Documentation

◆ activated

BOOL rdpShadowClient::activated

Definition at line 140 of file include/freerdp/server/shadow.h.

◆ areGfxCapsReady

BOOL rdpShadowClient::areGfxCapsReady

Definition at line 172 of file include/freerdp/server/shadow.h.

◆ confirmedCaps

RDPGFX_CAPSET rdpShadowClient::confirmedCaps

Since: version 3.3.0

Definition at line 173 of file include/freerdp/server/shadow.h.

◆ context

rdpContext rdpShadowClient::context

Definition at line 137 of file include/freerdp/server/shadow.h.

◆ encoder

rdpShadowEncoder* rdpShadowClient::encoder

Definition at line 151 of file include/freerdp/server/shadow.h.

◆ encomsp

EncomspServerContext* rdpShadowClient::encomsp

Definition at line 158 of file include/freerdp/server/shadow.h.

◆ first_frame

BOOL rdpShadowClient::first_frame

Definition at line 141 of file include/freerdp/server/shadow.h.

◆ inLobby

BOOL rdpShadowClient::inLobby

Definition at line 142 of file include/freerdp/server/shadow.h.

◆ invalidRegion

REGION16 rdpShadowClient::invalidRegion

Definition at line 149 of file include/freerdp/server/shadow.h.

◆ keysDown

BYTE rdpShadowClient::keysDown[128]

one drain of the channel queue at a time

Since: version 3.34.0 the keys this client pressed and has not released, one bit per scan code with its KBD_FLAGS_EXTENDED (0x100) and KBD_FLAGS_EXTENDED1 (0x200) flags; version 3.34.0

Definition at line 184 of file include/freerdp/server/shadow.h.

◆ lock

CRITICAL_SECTION rdpShadowClient::lock

Definition at line 148 of file include/freerdp/server/shadow.h.

◆ mayInteract

BOOL rdpShadowClient::mayInteract

Definition at line 144 of file include/freerdp/server/shadow.h.

◆ mayView

BOOL rdpShadowClient::mayView

Definition at line 143 of file include/freerdp/server/shadow.h.

◆ MsgQueue

wMessageQueue* rdpShadowClient::MsgQueue

Definition at line 147 of file include/freerdp/server/shadow.h.

◆ pointerX

UINT32 rdpShadowClient::pointerX

Definition at line 154 of file include/freerdp/server/shadow.h.

◆ pointerY

UINT32 rdpShadowClient::pointerY

Definition at line 155 of file include/freerdp/server/shadow.h.

◆ rdpgfx

RdpgfxServerContext* rdpShadowClient::rdpgfx

Definition at line 164 of file include/freerdp/server/shadow.h.

◆ rdpsnd

RdpsndServerContext* rdpShadowClient::rdpsnd

Definition at line 160 of file include/freerdp/server/shadow.h.

◆ remdesk

RemdeskServerContext* rdpShadowClient::remdesk

Definition at line 159 of file include/freerdp/server/shadow.h.

◆ resizeHeight

UINT32 rdpShadowClient::resizeHeight

Definition at line 171 of file include/freerdp/server/shadow.h.

◆ resizeRequested

BOOL rdpShadowClient::resizeRequested

Definition at line 169 of file include/freerdp/server/shadow.h.

◆ resizeWidth

UINT32 rdpShadowClient::resizeWidth

Definition at line 170 of file include/freerdp/server/shadow.h.

◆ server

rdpShadowServer* rdpShadowClient::server

Definition at line 150 of file include/freerdp/server/shadow.h.

◆ SoundQueue

wMessageQueue* rdpShadowClient::SoundQueue

Since: version 3.25.0 sound samples and volume: a thread of their own sends them, so that a frame being encoded does not hold the sound back; version 3.34.0

Definition at line 177 of file include/freerdp/server/shadow.h.
