include/winpr/thread.h File Reference

#include <winpr/winpr.h>
#include <winpr/wtypes.h>
#include <winpr/spec.h>
#include <winpr/handle.h>

Data Structures
struct	STARTUPINFOA
struct	STARTUPINFOW

Macros
#define	STARTF_USESHOWWINDOW   0x00000001
#define	STARTF_USESIZE   0x00000002
#define	STARTF_USEPOSITION   0x00000004
#define	STARTF_USECOUNTCHARS   0x00000008
#define	STARTF_USEFILLATTRIBUTE   0x00000010
#define	STARTF_RUNFULLSCREEN   0x00000020
#define	STARTF_FORCEONFEEDBACK   0x00000040
#define	STARTF_FORCEOFFFEEDBACK   0x00000080
#define	STARTF_USESTDHANDLES   0x00000100
#define	STARTF_USEHOTKEY   0x00000200
#define	STARTF_TITLEISLINKNAME   0x00000800
#define	STARTF_TITLEISAPPID   0x00001000
#define	STARTF_PREVENTPINNING   0x00002000
#define	LOGON_WITH_PROFILE   0x00000001
#define	LOGON_NETCREDENTIALS_ONLY   0x00000002
#define	LOGON_ZERO_PASSWORD_BUFFER   0x80000000
#define	CreateProcess   CreateProcessA
#define	CreateProcessAsUser   CreateProcessAsUserA
#define	CreateProcessWithLogon   CreateProcessWithLogonA
#define	CreateProcessWithToken   CreateProcessWithTokenA
#define	CommandLineToArgv   CommandLineToArgvA
#define	CREATE_SUSPENDED   0x00000004
#define	STACK_SIZE_PARAM_IS_A_RESERVATION   0x00010000
#define	TLS_OUT_OF_INDEXES   ((DWORD)0xFFFFFFFF)

Typedefs
typedef struct STARTUPINFOA *	LPSTARTUPINFOA
typedef struct STARTUPINFOW *	LPSTARTUPINFOW
typedef STARTUPINFOA	STARTUPINFO
typedef LPSTARTUPINFOA	LPSTARTUPINFO
typedef void(*	PAPCFUNC) (ULONG_PTR Parameter)

Functions
WINPR_API BOOL	CreateProcessA (LPCSTR lpApplicationName, LPSTR lpCommandLine, LPSECURITY_ATTRIBUTES lpProcessAttributes, LPSECURITY_ATTRIBUTES lpThreadAttributes, BOOL bInheritHandles, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCSTR lpCurrentDirectory, LPSTARTUPINFOA lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessW (LPCWSTR lpApplicationName, LPWSTR lpCommandLine, LPSECURITY_ATTRIBUTES lpProcessAttributes, LPSECURITY_ATTRIBUTES lpThreadAttributes, BOOL bInheritHandles, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCWSTR lpCurrentDirectory, LPSTARTUPINFOW lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessAsUserA (HANDLE hToken, LPCSTR lpApplicationName, LPSTR lpCommandLine, LPSECURITY_ATTRIBUTES lpProcessAttributes, LPSECURITY_ATTRIBUTES lpThreadAttributes, BOOL bInheritHandles, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCSTR lpCurrentDirectory, LPSTARTUPINFOA lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessAsUserW (HANDLE hToken, LPCWSTR lpApplicationName, LPWSTR lpCommandLine, LPSECURITY_ATTRIBUTES lpProcessAttributes, LPSECURITY_ATTRIBUTES lpThreadAttributes, BOOL bInheritHandles, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCWSTR lpCurrentDirectory, LPSTARTUPINFOW lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessWithLogonA (LPCSTR lpUsername, LPCSTR lpDomain, LPCSTR lpPassword, DWORD dwLogonFlags, LPCSTR lpApplicationName, LPSTR lpCommandLine, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCSTR lpCurrentDirectory, LPSTARTUPINFOA lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessWithLogonW (LPCWSTR lpUsername, LPCWSTR lpDomain, LPCWSTR lpPassword, DWORD dwLogonFlags, LPCWSTR lpApplicationName, LPWSTR lpCommandLine, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCWSTR lpCurrentDirectory, LPSTARTUPINFOW lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessWithTokenA (HANDLE hToken, DWORD dwLogonFlags, LPCSTR lpApplicationName, LPSTR lpCommandLine, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCSTR lpCurrentDirectory, LPSTARTUPINFOA lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
WINPR_API BOOL	CreateProcessWithTokenW (HANDLE hToken, DWORD dwLogonFlags, LPCWSTR lpApplicationName, LPWSTR lpCommandLine, DWORD dwCreationFlags, LPVOID lpEnvironment, LPCWSTR lpCurrentDirectory, LPSTARTUPINFOW lpStartupInfo, LPPROCESS_INFORMATION lpProcessInformation)
DECLSPEC_NORETURN WINPR_API VOID	ExitProcess (UINT uExitCode)
WINPR_API BOOL	GetExitCodeProcess (HANDLE hProcess, LPDWORD lpExitCode)
WINPR_API HANDLE	_GetCurrentProcess (void)
WINPR_API DWORD	GetCurrentProcessId (void)
WINPR_API BOOL	TerminateProcess (HANDLE hProcess, UINT uExitCode)
WINPR_API LPWSTR *	CommandLineToArgvW (LPCWSTR lpCmdLine, int *pNumArgs)
WINPR_API HANDLE	CreateThread (LPSECURITY_ATTRIBUTES lpThreadAttributes, SIZE_T dwStackSize, LPTHREAD_START_ROUTINE lpStartAddress, LPVOID lpParameter, DWORD dwCreationFlags, LPDWORD lpThreadId)
WINPR_API HANDLE	CreateRemoteThread (HANDLE hProcess, LPSECURITY_ATTRIBUTES lpThreadAttributes, SIZE_T dwStackSize, LPTHREAD_START_ROUTINE lpStartAddress, LPVOID lpParameter, DWORD dwCreationFlags, LPDWORD lpThreadId)
WINPR_API VOID	ExitThread (DWORD dwExitCode)
WINPR_API BOOL	GetExitCodeThread (HANDLE hThread, LPDWORD lpExitCode)
WINPR_API HANDLE	_GetCurrentThread (void)
WINPR_API DWORD	GetCurrentThreadId (void)
WINPR_API DWORD	QueueUserAPC (PAPCFUNC pfnAPC, HANDLE hThread, ULONG_PTR dwData)
WINPR_API DWORD	ResumeThread (HANDLE hThread)
WINPR_API DWORD	SuspendThread (HANDLE hThread)
WINPR_API BOOL	SwitchToThread (void)
WINPR_API BOOL	TerminateThread (HANDLE hThread, DWORD dwExitCode)
WINPR_API DWORD	GetCurrentProcessorNumber (void)
WINPR_API DWORD	TlsAlloc (void)
WINPR_API LPVOID	TlsGetValue (DWORD dwTlsIndex)
WINPR_API BOOL	TlsSetValue (DWORD dwTlsIndex, LPVOID lpTlsValue)
WINPR_API BOOL	TlsFree (DWORD dwTlsIndex)
WINPR_API LPSTR *	CommandLineToArgvA (LPCSTR lpCmdLine, int *pNumArgs)
WINPR_API VOID	DumpThreadHandles (void)

Macro Definition Documentation

CommandLineToArgv

#define CommandLineToArgv   CommandLineToArgvA

CREATE_SUSPENDED

#define CREATE_SUSPENDED   0x00000004

CreateProcess

#define CreateProcess   CreateProcessA

CreateProcessAsUser

#define CreateProcessAsUser   CreateProcessAsUserA

CreateProcessWithLogon

#define CreateProcessWithLogon   CreateProcessWithLogonA

CreateProcessWithToken

#define CreateProcessWithToken   CreateProcessWithTokenA

LOGON_NETCREDENTIALS_ONLY

#define LOGON_NETCREDENTIALS_ONLY   0x00000002

LOGON_WITH_PROFILE

#define LOGON_WITH_PROFILE   0x00000001

LOGON_ZERO_PASSWORD_BUFFER

#define LOGON_ZERO_PASSWORD_BUFFER   0x80000000

STACK_SIZE_PARAM_IS_A_RESERVATION

#define STACK_SIZE_PARAM_IS_A_RESERVATION   0x00010000

STARTF_FORCEOFFFEEDBACK

#define STARTF_FORCEOFFFEEDBACK   0x00000080

STARTF_FORCEONFEEDBACK

#define STARTF_FORCEONFEEDBACK   0x00000040

STARTF_PREVENTPINNING

#define STARTF_PREVENTPINNING   0x00002000

STARTF_RUNFULLSCREEN

#define STARTF_RUNFULLSCREEN   0x00000020

STARTF_TITLEISAPPID

#define STARTF_TITLEISAPPID   0x00001000

STARTF_TITLEISLINKNAME

#define STARTF_TITLEISLINKNAME   0x00000800

STARTF_USECOUNTCHARS

#define STARTF_USECOUNTCHARS   0x00000008

STARTF_USEFILLATTRIBUTE

#define STARTF_USEFILLATTRIBUTE   0x00000010

STARTF_USEHOTKEY

#define STARTF_USEHOTKEY   0x00000200

STARTF_USEPOSITION

#define STARTF_USEPOSITION   0x00000004

STARTF_USESHOWWINDOW

#define STARTF_USESHOWWINDOW   0x00000001

STARTF_USESIZE

#define STARTF_USESIZE   0x00000002

STARTF_USESTDHANDLES

#define STARTF_USESTDHANDLES   0x00000100

TLS_OUT_OF_INDEXES

#define TLS_OUT_OF_INDEXES   ((DWORD)0xFFFFFFFF)

Typedef Documentation

LPSTARTUPINFO

typedef LPSTARTUPINFOA LPSTARTUPINFO

LPSTARTUPINFOA

typedef struct STARTUPINFOA * LPSTARTUPINFOA

LPSTARTUPINFOW

typedef struct STARTUPINFOW * LPSTARTUPINFOW

PAPCFUNC

typedef void(* PAPCFUNC) (ULONG_PTR Parameter)

STARTUPINFO

typedef STARTUPINFOA STARTUPINFO

Function Documentation

_GetCurrentProcess()

WINPR_API HANDLE _GetCurrentProcess

(

void

)

_GetCurrentThread()

WINPR_API HANDLE _GetCurrentThread

(

void

)

Here is the caller graph for this function:

CommandLineToArgvA()

WINPR_API LPSTR* CommandLineToArgvA	(	LPCSTR	lpCmdLine,
		int *	pNumArgs
	)

CommandLineToArgvW function: http://msdn.microsoft.com/en-us/library/windows/desktop/bb776391/

CommandLineToArgvW has a special interpretation of backslash characters when they are followed by a quotation mark character ("), as follows:

2n backslashes followed by a quotation mark produce n backslashes followed by a quotation mark. (2n) + 1 backslashes followed by a quotation mark again produce n backslashes followed by a quotation mark. n backslashes not followed by a quotation mark simply produce n backslashes.

The address returned by CommandLineToArgvW is the address of the first element in an array of LPWSTR values; the number of pointers in this array is indicated by pNumArgs. Each pointer to a null-terminated Unicode string represents an individual argument found on the command line.

CommandLineToArgvW allocates a block of contiguous memory for pointers to the argument strings, and for the argument strings themselves; the calling application must free the memory used by the argument list when it is no longer needed. To free the memory, use a single call to the LocalFree function. Parsing C++ Command-Line Arguments: http://msdn.microsoft.com/en-us/library/windows/desktop/17w5ykft

Microsoft C/C++ startup code uses the following rules when interpreting arguments given on the operating system command line:

Arguments are delimited by white space, which is either a space or a tab.

The caret character (^) is not recognized as an escape character or delimiter. The character is handled completely by the command-line parser in the operating system before being passed to the argv array in the program.

A string surrounded by double quotation marks ("string") is interpreted as a single argument, regardless of white space contained within. A quoted string can be embedded in an argument.

A double quotation mark preceded by a backslash (") is interpreted as a literal double quotation mark character (").

Backslashes are interpreted literally, unless they immediately precede a double quotation mark.

If an even number of backslashes is followed by a double quotation mark, one backslash is placed in the argv array for every pair of backslashes, and the double quotation mark is interpreted as a string delimiter.

If an odd number of backslashes is followed by a double quotation mark, one backslash is placed in the argv array for every pair of backslashes, and the double quotation mark is "escaped" by the remaining backslash, causing a literal double quotation mark (") to be placed in argv.

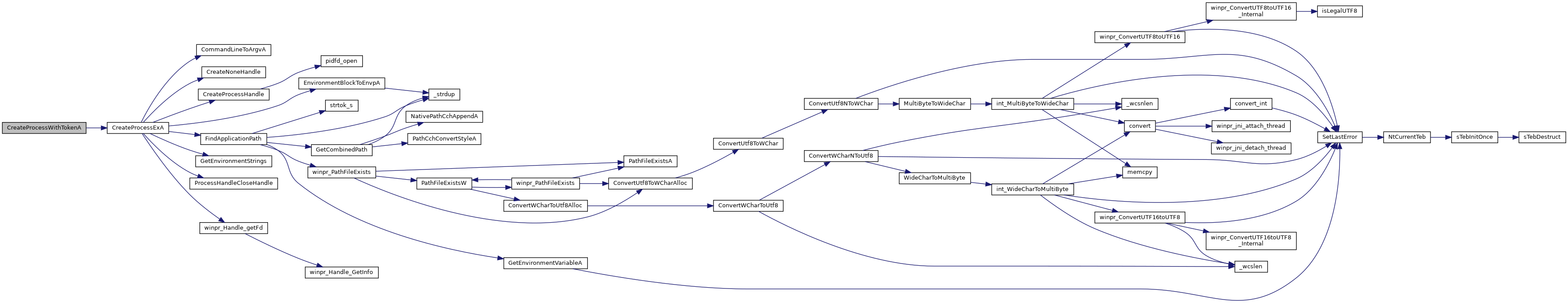

Here is the call graph for this function:

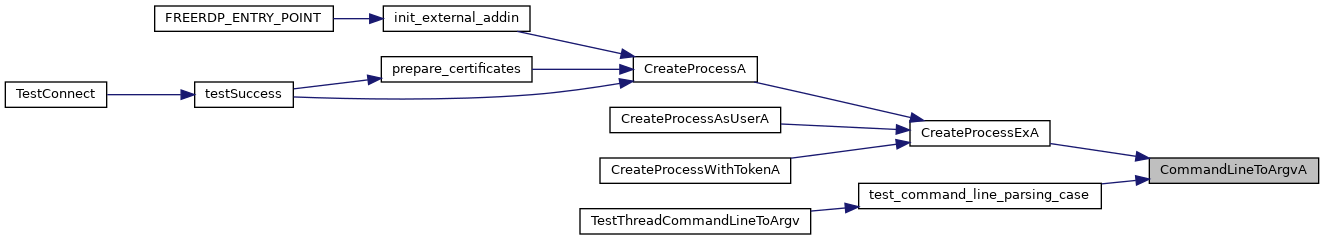

Here is the caller graph for this function:

CommandLineToArgvW()

WINPR_API LPWSTR* CommandLineToArgvW	(	LPCWSTR	lpCmdLine,
		int *	pNumArgs
	)

Here is the caller graph for this function:

CreateProcessA()

WINPR_API BOOL CreateProcessA	(	LPCSTR	lpApplicationName,
		LPSTR	lpCommandLine,
		LPSECURITY_ATTRIBUTES	lpProcessAttributes,
		LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		BOOL	bInheritHandles,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCSTR	lpCurrentDirectory,
		LPSTARTUPINFOA	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

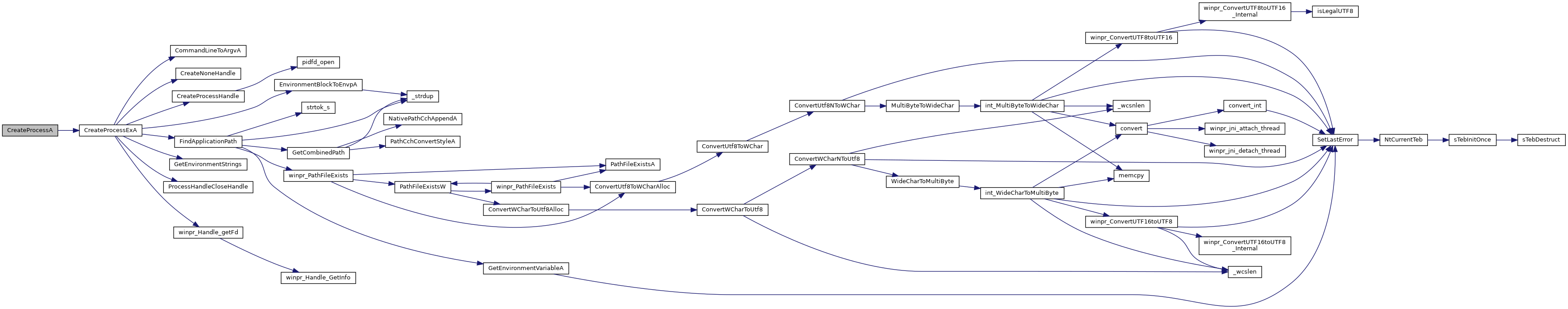

Here is the call graph for this function:

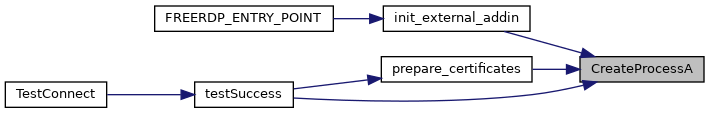

Here is the caller graph for this function:

CreateProcessAsUserA()

WINPR_API BOOL CreateProcessAsUserA	(	HANDLE	hToken,
		LPCSTR	lpApplicationName,
		LPSTR	lpCommandLine,
		LPSECURITY_ATTRIBUTES	lpProcessAttributes,
		LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		BOOL	bInheritHandles,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCSTR	lpCurrentDirectory,
		LPSTARTUPINFOA	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

Here is the call graph for this function:

CreateProcessAsUserW()

WINPR_API BOOL CreateProcessAsUserW	(	HANDLE	hToken,
		LPCWSTR	lpApplicationName,
		LPWSTR	lpCommandLine,
		LPSECURITY_ATTRIBUTES	lpProcessAttributes,
		LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		BOOL	bInheritHandles,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCWSTR	lpCurrentDirectory,
		LPSTARTUPINFOW	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

CreateProcessW()

WINPR_API BOOL CreateProcessW	(	LPCWSTR	lpApplicationName,
		LPWSTR	lpCommandLine,
		LPSECURITY_ATTRIBUTES	lpProcessAttributes,
		LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		BOOL	bInheritHandles,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCWSTR	lpCurrentDirectory,
		LPSTARTUPINFOW	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

CreateProcessWithLogonA()

WINPR_API BOOL CreateProcessWithLogonA	(	LPCSTR	lpUsername,
		LPCSTR	lpDomain,
		LPCSTR	lpPassword,
		DWORD	dwLogonFlags,
		LPCSTR	lpApplicationName,
		LPSTR	lpCommandLine,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCSTR	lpCurrentDirectory,
		LPSTARTUPINFOA	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

CreateProcessWithLogonW()

WINPR_API BOOL CreateProcessWithLogonW	(	LPCWSTR	lpUsername,
		LPCWSTR	lpDomain,
		LPCWSTR	lpPassword,
		DWORD	dwLogonFlags,
		LPCWSTR	lpApplicationName,
		LPWSTR	lpCommandLine,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCWSTR	lpCurrentDirectory,
		LPSTARTUPINFOW	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

CreateProcessWithTokenA()

WINPR_API BOOL CreateProcessWithTokenA	(	HANDLE	hToken,
		DWORD	dwLogonFlags,
		LPCSTR	lpApplicationName,
		LPSTR	lpCommandLine,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCSTR	lpCurrentDirectory,
		LPSTARTUPINFOA	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

Here is the call graph for this function:

CreateProcessWithTokenW()

WINPR_API BOOL CreateProcessWithTokenW	(	HANDLE	hToken,
		DWORD	dwLogonFlags,
		LPCWSTR	lpApplicationName,
		LPWSTR	lpCommandLine,
		DWORD	dwCreationFlags,
		LPVOID	lpEnvironment,
		LPCWSTR	lpCurrentDirectory,
		LPSTARTUPINFOW	lpStartupInfo,
		LPPROCESS_INFORMATION	lpProcessInformation
	)

CreateRemoteThread()

WINPR_API HANDLE CreateRemoteThread	(	HANDLE	hProcess,
		LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		SIZE_T	dwStackSize,
		LPTHREAD_START_ROUTINE	lpStartAddress,
		LPVOID	lpParameter,
		DWORD	dwCreationFlags,
		LPDWORD	lpThreadId
	)

Here is the call graph for this function:

CreateThread()

WINPR_API HANDLE CreateThread	(	LPSECURITY_ATTRIBUTES	lpThreadAttributes,
		SIZE_T	dwStackSize,
		LPTHREAD_START_ROUTINE	lpStartAddress,
		LPVOID	lpParameter,
		DWORD	dwCreationFlags,
		LPDWORD	lpThreadId
	)

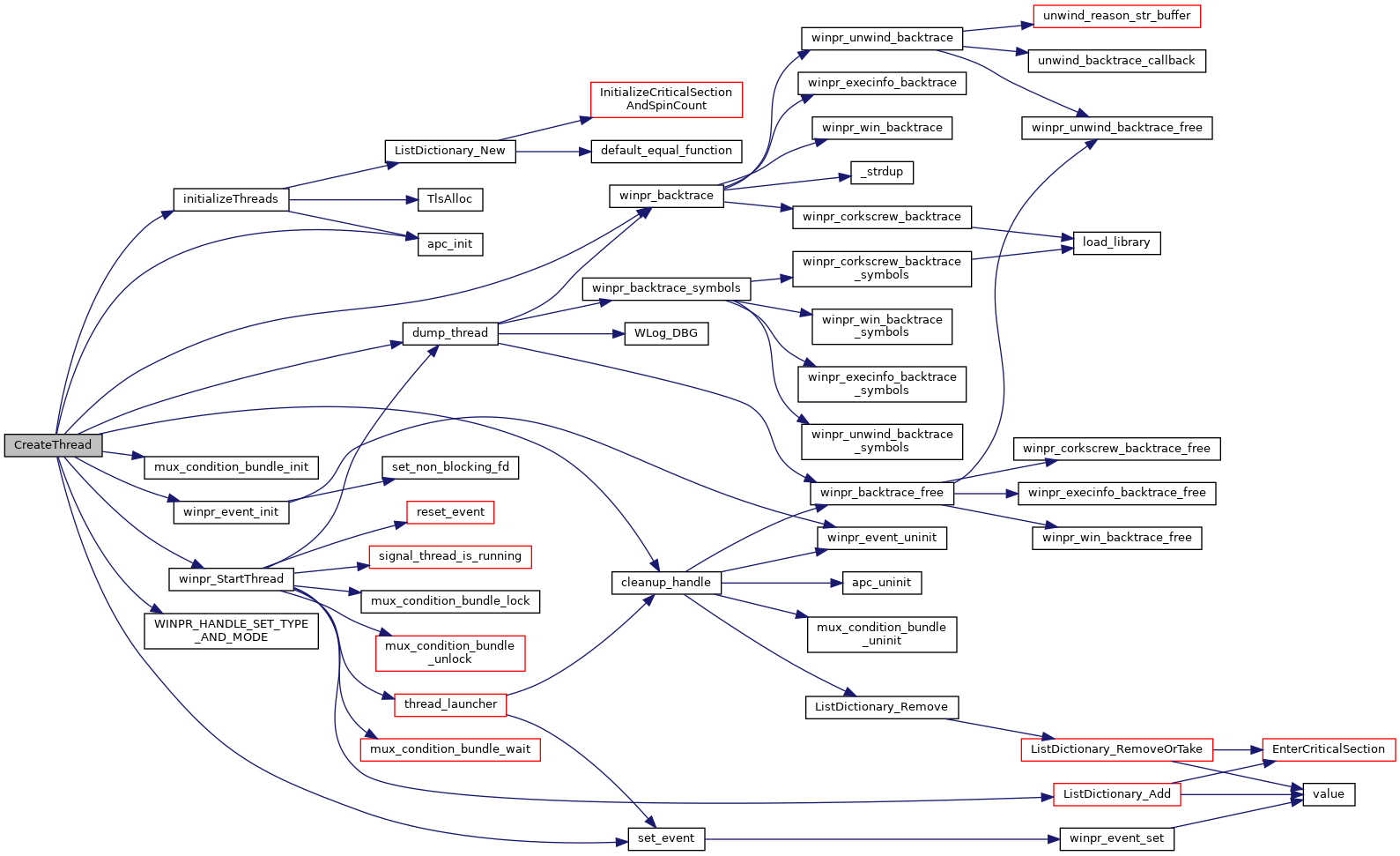

Here is the call graph for this function:

DumpThreadHandles()

WINPR_API VOID DumpThreadHandles

(

void

)

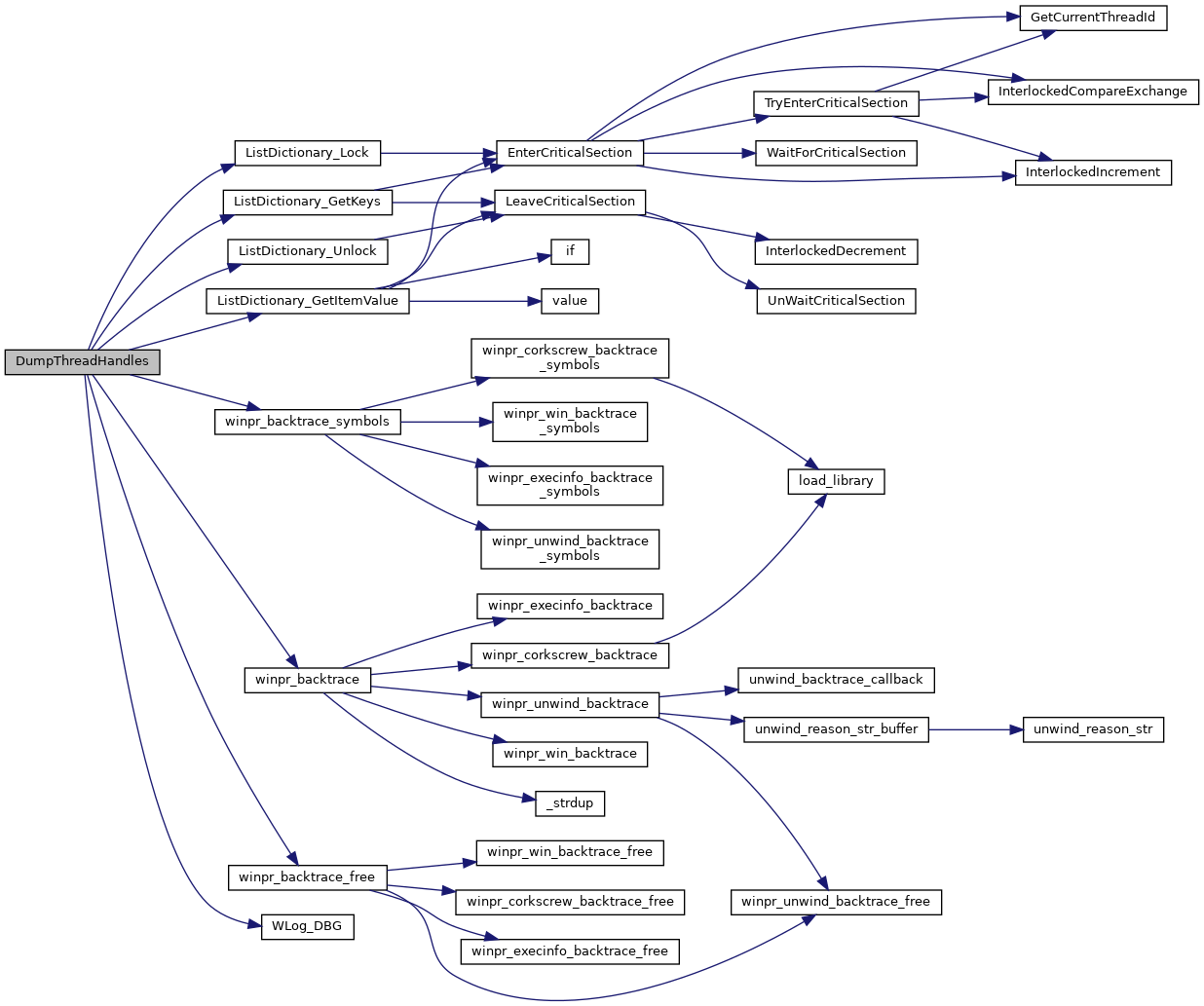

Here is the call graph for this function:

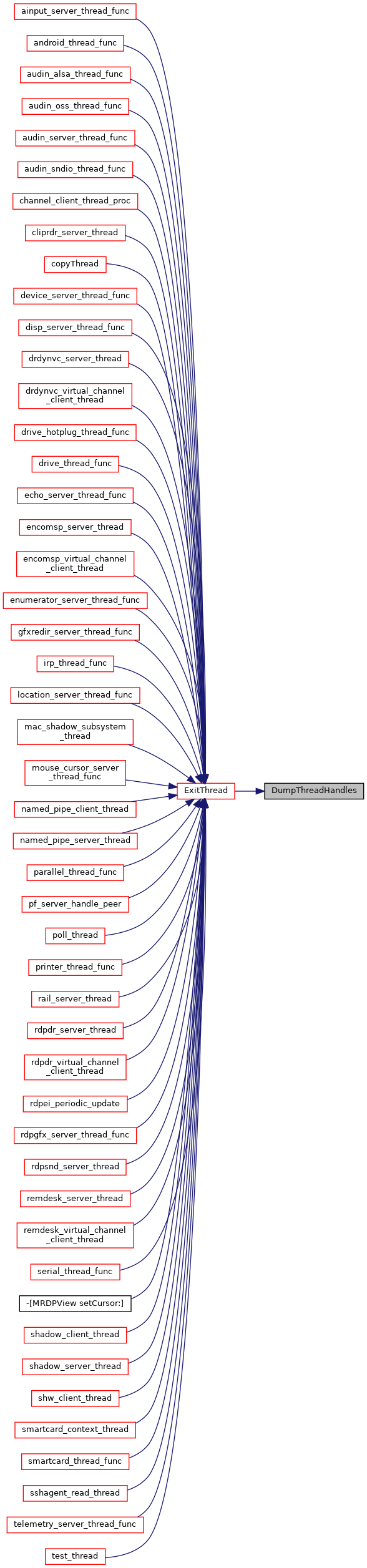

Here is the caller graph for this function:

ExitProcess()

DECLSPEC_NORETURN WINPR_API VOID ExitProcess

(

UINT

uExitCode

)

ExitThread()

WINPR_API VOID ExitThread

(

DWORD

dwExitCode

)

Here is the call graph for this function:

GetCurrentProcessId()

WINPR_API DWORD GetCurrentProcessId

(

void

)

Here is the caller graph for this function:

GetCurrentProcessorNumber()

WINPR_API DWORD GetCurrentProcessorNumber

(

void

)

GetCurrentThreadId()

WINPR_API DWORD GetCurrentThreadId

(

void

)

Here is the caller graph for this function:

GetExitCodeProcess()

WINPR_API BOOL GetExitCodeProcess	(	HANDLE	hProcess,
		LPDWORD	lpExitCode
	)

Here is the caller graph for this function:

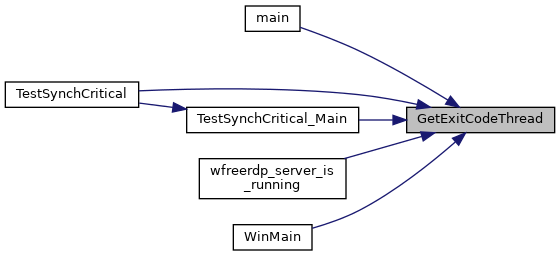

GetExitCodeThread()

WINPR_API BOOL GetExitCodeThread	(	HANDLE	hThread,
		LPDWORD	lpExitCode
	)

Here is the call graph for this function:

Here is the caller graph for this function:

QueueUserAPC()

WINPR_API DWORD QueueUserAPC	(	PAPCFUNC	pfnAPC,
		HANDLE	hThread,
		ULONG_PTR	dwData
	)

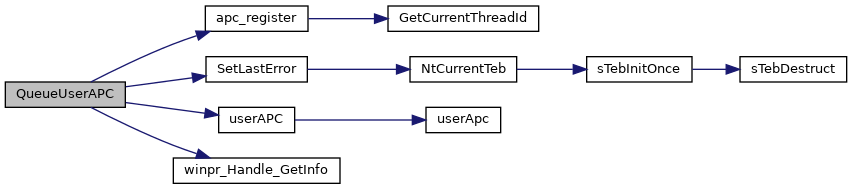

Here is the call graph for this function:

Here is the caller graph for this function:

ResumeThread()

WINPR_API DWORD ResumeThread

(

HANDLE

hThread

)

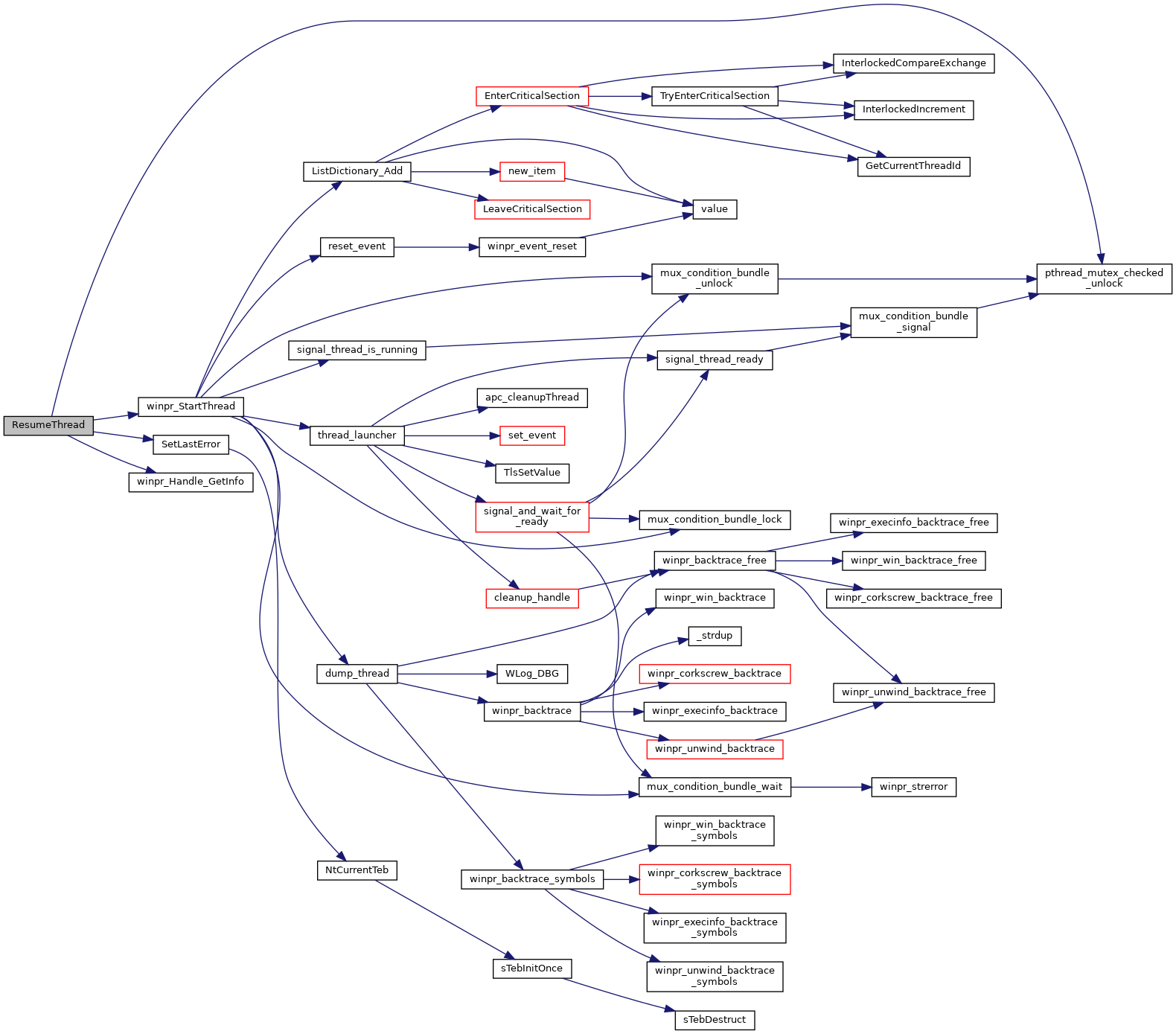

Here is the call graph for this function:

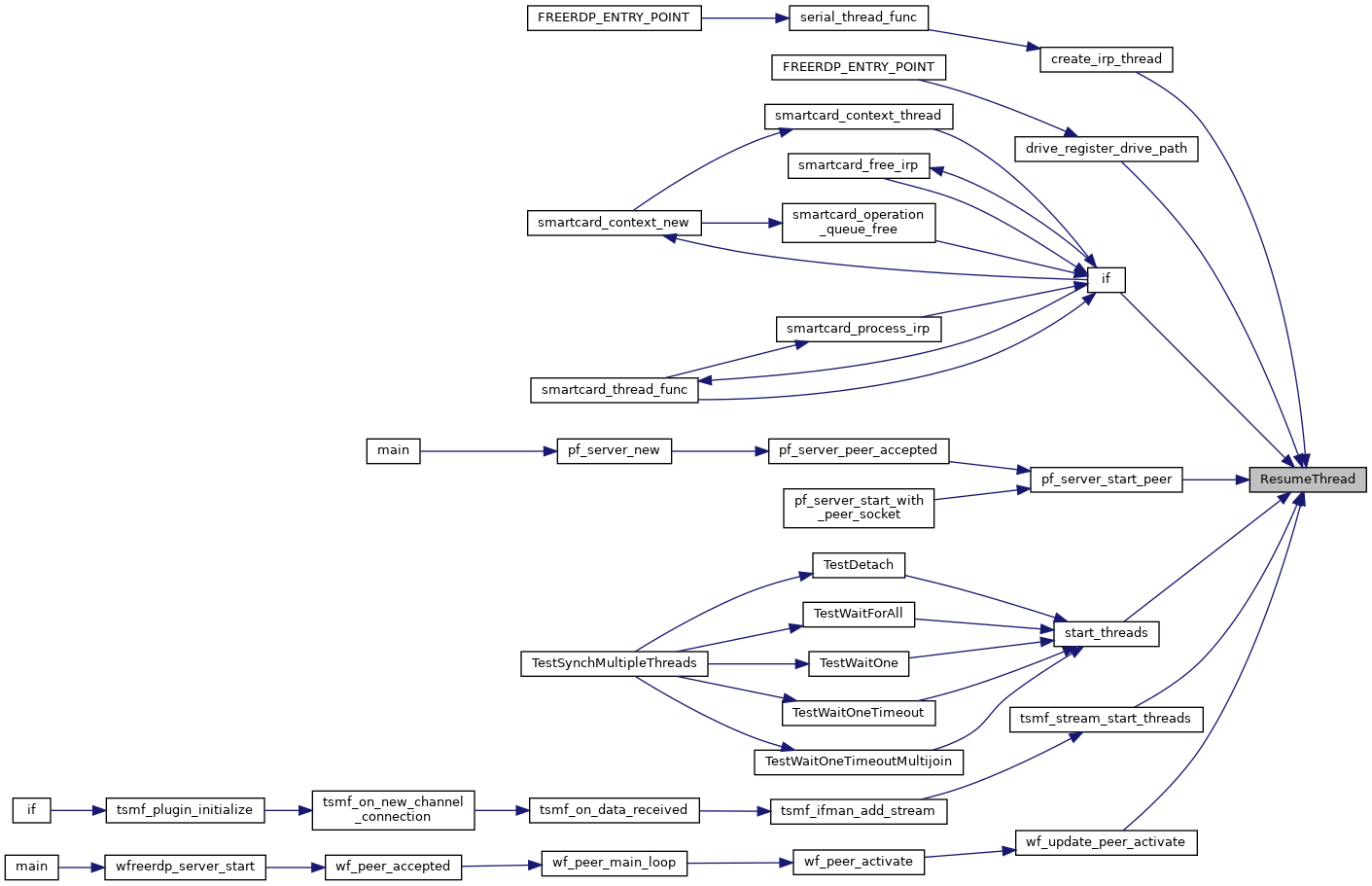

Here is the caller graph for this function:

SuspendThread()

WINPR_API DWORD SuspendThread

(

HANDLE

hThread

)

Here is the call graph for this function:

SwitchToThread()

WINPR_API BOOL SwitchToThread

(

void

)

TerminateProcess()

WINPR_API BOOL TerminateProcess	(	HANDLE	hProcess,
		UINT	uExitCode
	)

Here is the caller graph for this function:

TerminateThread()

WINPR_API BOOL TerminateThread	(	HANDLE	hThread,
		DWORD	dwExitCode
	)

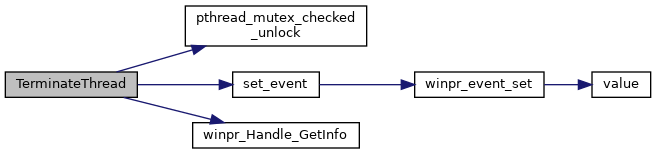

Here is the call graph for this function:

Here is the caller graph for this function:

TlsAlloc()

WINPR_API DWORD TlsAlloc

(

void

)

WinPR: Windows Portable Runtime Process Thread Functions

Copyright 2012 Marc-Andre Moreau marca.nosp@m.ndre.nosp@m..more.nosp@m.au@g.nosp@m.mail..nosp@m.com

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. TlsAlloc TlsFree TlsGetValue TlsSetValue

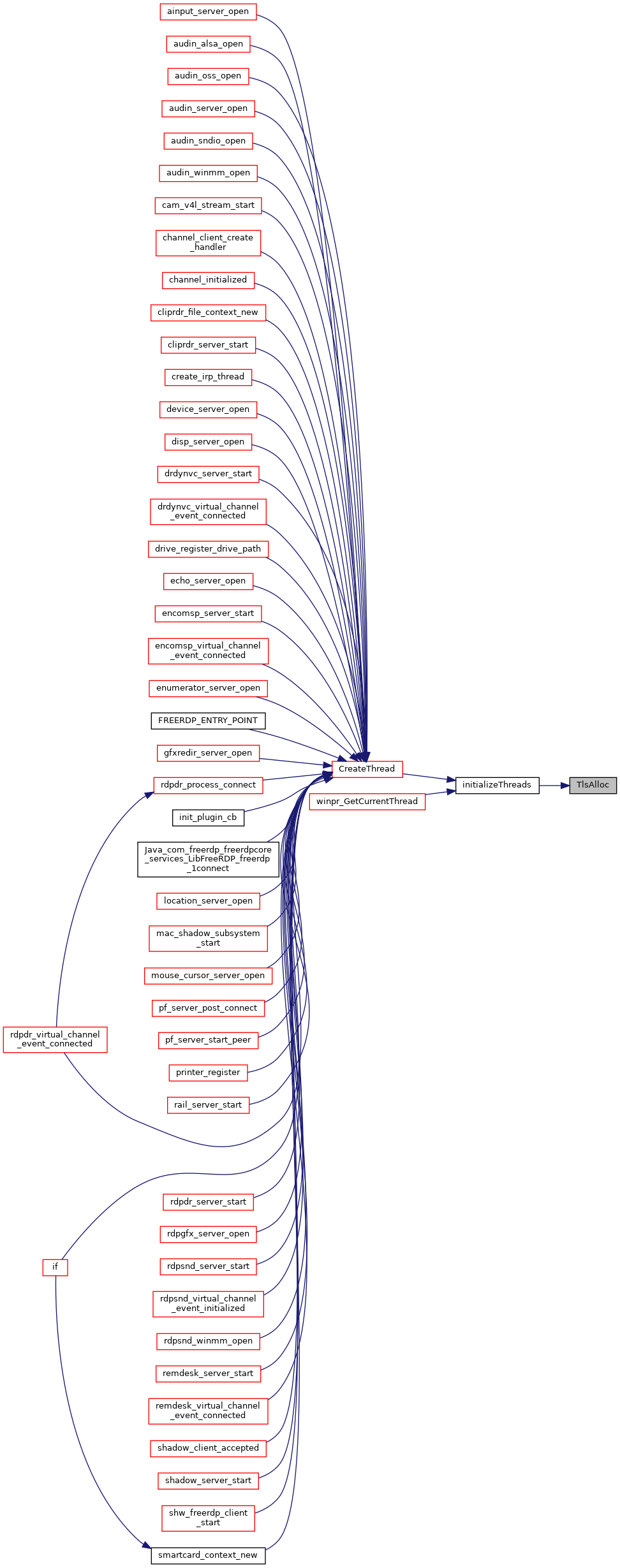

Here is the caller graph for this function:

TlsFree()

WINPR_API BOOL TlsFree

(

DWORD

dwTlsIndex

)

TlsGetValue()

WINPR_API LPVOID TlsGetValue

(

DWORD

dwTlsIndex

)

Here is the call graph for this function:

Here is the caller graph for this function:

TlsSetValue()

WINPR_API BOOL TlsSetValue	(	DWORD	dwTlsIndex,
		LPVOID	lpTlsValue
	)

Here is the caller graph for this function:
