[MS-RDPEMSC]

Data Structures
struct	RDP_MOUSE_CURSOR_HEADER
struct	RDP_MOUSE_CURSOR_CAPSET
struct	RDP_MOUSE_CURSOR_CAPSET_VERSION1
struct	RDP_MOUSE_CURSOR_CAPS_ADVERTISE_PDU
struct	RDP_MOUSE_CURSOR_CAPS_CONFIRM_PDU
struct	TS_POINT16
struct	TS_POINTERATTRIBUTE
struct	TS_LARGEPOINTERATTRIBUTE
struct	RDP_MOUSE_CURSOR_MOUSEPTR_UPDATE_PDU

Macros
#define	RDPEMSC_CHANNEL_NAME   "mousecursor"
#define	RDPEMSC_DVC_CHANNEL_NAME   "Microsoft::Windows::RDS::MouseCursor"
#define	RDPEMSC_HEADER_SIZE   4

Enumerations
enum	RDP_MOUSE_CURSOR_PDUTYPE { PDUTYPE_EMSC_RESERVED = 0x00 , PDUTYPE_CS_CAPS_ADVERTISE = 0x01 , PDUTYPE_SC_CAPS_CONFIRM = 0x02 , PDUTYPE_SC_MOUSEPTR_UPDATE = 0x03 }
enum	TS_UPDATETYPE_MOUSEPTR {   TS_UPDATETYPE_MOUSEPTR_SYSTEM_NULL = 0x05 , TS_UPDATETYPE_MOUSEPTR_SYSTEM_DEFAULT = 0x06 , TS_UPDATETYPE_MOUSEPTR_POSITION = 0x08 , TS_UPDATETYPE_MOUSEPTR_CACHED = 0x0A ,   TS_UPDATETYPE_MOUSEPTR_POINTER = 0x0B , TS_UPDATETYPE_MOUSEPTR_LARGE_POINTER = 0x0C }
enum	RDP_MOUSE_CURSOR_CAPVERSION { RDP_MOUSE_CURSOR_CAPVERSION_INVALID = 0x00000000 , RDP_MOUSE_CURSOR_CAPVERSION_1 = 0x00000001 }

Detailed Description

FreeRDP: A Remote Desktop Protocol Implementation Mouse Cursor Virtual Channel Extension

Copyright 2023 Pascal Nowack Pasca.nosp@m.l.No.nosp@m.wack@.nosp@m.gmx..nosp@m.de

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

---

Data Structure Documentation

RDP_MOUSE_CURSOR_HEADER

struct RDP_MOUSE_CURSOR_HEADER

Definition at line 68 of file channels/rdpemsc.h.

Data Fields
RDP_MOUSE_CURSOR_PDUTYPE	pduType
UINT16	reserved
TS_UPDATETYPE_MOUSEPTR	updateType

RDP_MOUSE_CURSOR_CAPSET

struct RDP_MOUSE_CURSOR_CAPSET

Definition at line 81 of file channels/rdpemsc.h.

Data Fields
UINT32	signature
UINT32	size
RDP_MOUSE_CURSOR_CAPVERSION	version

RDP_MOUSE_CURSOR_CAPSET_VERSION1

struct RDP_MOUSE_CURSOR_CAPSET_VERSION1

Definition at line 88 of file channels/rdpemsc.h.

Collaboration diagram for RDP_MOUSE_CURSOR_CAPSET_VERSION1:

Data Fields
RDP_MOUSE_CURSOR_CAPSET	capsetHeader

RDP_MOUSE_CURSOR_CAPS_ADVERTISE_PDU

struct RDP_MOUSE_CURSOR_CAPS_ADVERTISE_PDU

Definition at line 93 of file channels/rdpemsc.h.

Collaboration diagram for RDP_MOUSE_CURSOR_CAPS_ADVERTISE_PDU:

Data Fields
wArrayList *	capsSets
RDP_MOUSE_CURSOR_HEADER	header

RDP_MOUSE_CURSOR_CAPS_CONFIRM_PDU

struct RDP_MOUSE_CURSOR_CAPS_CONFIRM_PDU

Definition at line 99 of file channels/rdpemsc.h.

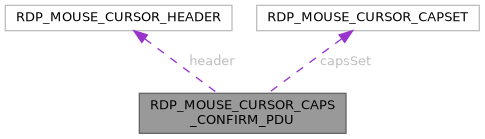

Collaboration diagram for RDP_MOUSE_CURSOR_CAPS_CONFIRM_PDU:

Data Fields
RDP_MOUSE_CURSOR_CAPSET *	capsSet
RDP_MOUSE_CURSOR_HEADER	header

TS_POINT16

struct TS_POINT16

Definition at line 105 of file channels/rdpemsc.h.

Data Fields
UINT16	xPos
UINT16	yPos

TS_POINTERATTRIBUTE

struct TS_POINTERATTRIBUTE

Definition at line 111 of file channels/rdpemsc.h.

Collaboration diagram for TS_POINTERATTRIBUTE:

Data Fields
BYTE *	andMaskData
UINT16	cacheIndex
UINT16	height
TS_POINT16	hotSpot
UINT16	lengthAndMask
UINT16	lengthXorMask
BYTE	pad
UINT16	width
UINT16	xorBpp
BYTE *	xorMaskData

TS_LARGEPOINTERATTRIBUTE

struct TS_LARGEPOINTERATTRIBUTE

Definition at line 125 of file channels/rdpemsc.h.

Collaboration diagram for TS_LARGEPOINTERATTRIBUTE:

Data Fields
BYTE *	andMaskData
UINT16	cacheIndex
UINT16	height
TS_POINT16	hotSpot
UINT32	lengthAndMask
UINT32	lengthXorMask
BYTE	pad
UINT16	width
UINT16	xorBpp
BYTE *	xorMaskData

RDP_MOUSE_CURSOR_MOUSEPTR_UPDATE_PDU

struct RDP_MOUSE_CURSOR_MOUSEPTR_UPDATE_PDU

Definition at line 139 of file channels/rdpemsc.h.

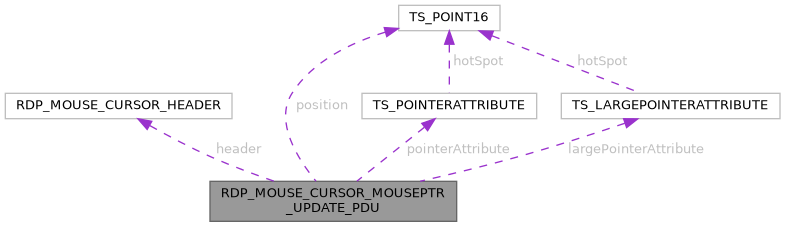

Collaboration diagram for RDP_MOUSE_CURSOR_MOUSEPTR_UPDATE_PDU:

Data Fields
UINT16 *	cachedPointerIndex
RDP_MOUSE_CURSOR_HEADER	header
TS_LARGEPOINTERATTRIBUTE *	largePointerAttribute
TS_POINTERATTRIBUTE *	pointerAttribute
TS_POINT16 *	position

Macro Definition Documentation

RDPEMSC_CHANNEL_NAME

#define RDPEMSC_CHANNEL_NAME   "mousecursor"

The command line name of the channel

Since

version 3.0.0

Definition at line 40 of file channels/rdpemsc.h.

RDPEMSC_DVC_CHANNEL_NAME

#define RDPEMSC_DVC_CHANNEL_NAME   "Microsoft::Windows::RDS::MouseCursor"

Definition at line 41 of file channels/rdpemsc.h.

RDPEMSC_HEADER_SIZE

#define RDPEMSC_HEADER_SIZE   4

Definition at line 66 of file channels/rdpemsc.h.

Enumeration Type Documentation

RDP_MOUSE_CURSOR_CAPVERSION

enum RDP_MOUSE_CURSOR_CAPVERSION

Enumerator
RDP_MOUSE_CURSOR_CAPVERSION_1	Since version 3.3.0

Definition at line 75 of file channels/rdpemsc.h.

  {
    RDP_MOUSE_CURSOR_CAPVERSION_INVALID = 0x00000000,
    RDP_MOUSE_CURSOR_CAPVERSION_1 = 0x00000001,
  } RDP_MOUSE_CURSOR_CAPVERSION;

RDP_MOUSE_CURSOR_PDUTYPE

enum RDP_MOUSE_CURSOR_PDUTYPE

Definition at line 48 of file channels/rdpemsc.h.

  {
    PDUTYPE_EMSC_RESERVED = 0x00,
    PDUTYPE_CS_CAPS_ADVERTISE = 0x01,
    PDUTYPE_SC_CAPS_CONFIRM = 0x02,
    PDUTYPE_SC_MOUSEPTR_UPDATE = 0x03,
  } RDP_MOUSE_CURSOR_PDUTYPE;

TS_UPDATETYPE_MOUSEPTR

enum TS_UPDATETYPE_MOUSEPTR

Definition at line 56 of file channels/rdpemsc.h.

  {
    TS_UPDATETYPE_MOUSEPTR_SYSTEM_NULL = 0x05,
    TS_UPDATETYPE_MOUSEPTR_SYSTEM_DEFAULT = 0x06,
    TS_UPDATETYPE_MOUSEPTR_POSITION = 0x08,
    TS_UPDATETYPE_MOUSEPTR_CACHED = 0x0A,
    TS_UPDATETYPE_MOUSEPTR_POINTER = 0x0B,
    TS_UPDATETYPE_MOUSEPTR_LARGE_POINTER = 0x0C,
  } TS_UPDATETYPE_MOUSEPTR;
